Product name : SMA Outer Flange Mounted RF Termination Load – Non-Standard Design
Characteristic impedance : 50Ω
Dielectric withstanding voltage : 3W
Gender : Male
Type : Stright
Material : Brass
Plating : Ternary alloy
SMA Outer Flange Mounted RF Termination Load – Non-Standard Design
Product Overview
This coaxial end load is a passive single-port microwave device designed to absorb RF energy and improve impedance matching within a system. Engineered for stability and precision, it is ideal for applications requiring consistent performance in high-frequency environments.
Applications
RF signal transmission system testing
Electronic measurement instruments
Radio communication equipment
Microwave systems and modules
Key Features
SMA interface with four-hole flange mounting
Non-standard structure for specialized integration
Wide frequency range and low VSWR
High electrical performance and reliability
Compact, durable, and easy to install

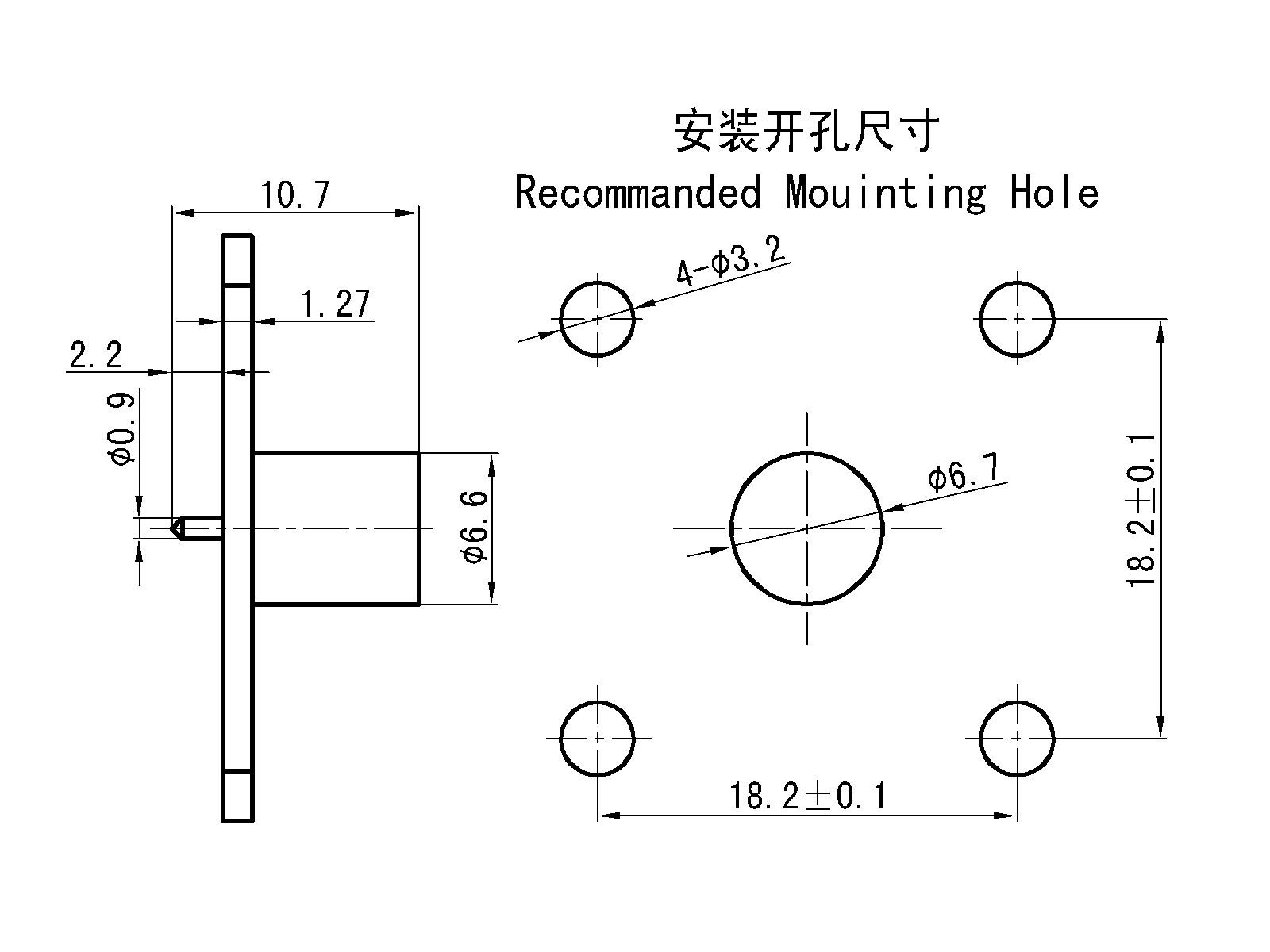

Product Specifications
Important Technical Parameters
Electrical property
| Temperature range | -65~+125℃ | |
Characteristic impedance
| 50Ω | Frequency range | DC-6GHz |
Power
| 3W | VSWR | ≤1.3 |
Mechanical property | Durability | 500times |
Materials and Surface Treatment
Center conductor
| Brass,gold plating | Insulating medium | PTFE |
Outer conductor
| Brass,ternary alloy plating | / | / |
Product Image Gallery
![]() |

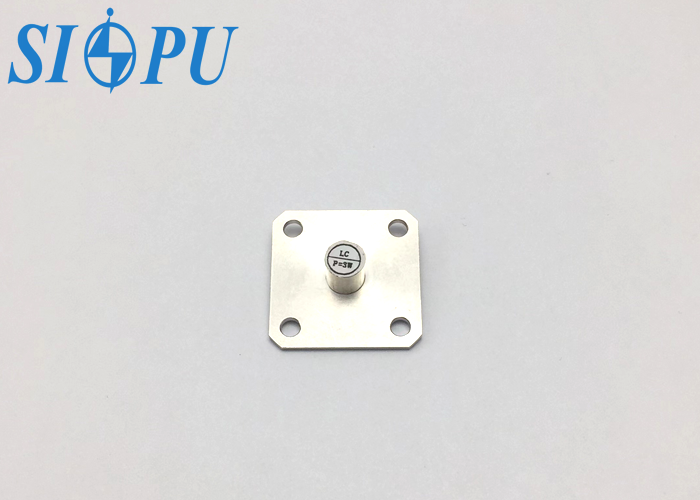

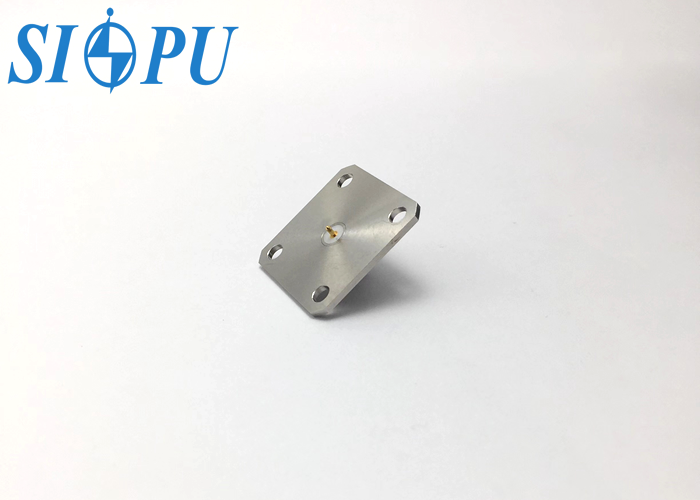

SMA Outer Flange Mounted RF Termination Load – Non-Standard Design Images |
