SSMA Male Cable Assembly – Welded Type Compatible with AA1836 / CXN3507 Cable

Brand Name : SIPU

Model Number : SSMA-J3507G-T/SSMA-J3507G-T-AA1836-L

Certification : ISO9001, RoHS, CE

Place of Origin : China

MOQ : 50

Price : Provide a quotation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs/year

Delivery Time : 6-8work days

Packaging Details : Carton

Product name : SSMA Male Cable Assembly – Welded Type Compatible with AA1836 / CXN3507 Cable

Characteristic impedance : 50Ω

Dielectric withstanding voltage : ≤±3°

Frequency range : DC-1.13GHz

Contact Now

SSMA Male Cable Assembly – Welded Type Compatible with AA1836 / CXN3507 Cable

Product Overview

The RF coaxial cable assembly primarily consists of three parts: connectors at both ends and the coaxial cable itself. Based on flexibility, cables are generally categorized into three types: semi-rigid (semi-steel), semi-flexible, and fully flexible. This particular assembly utilizes a flexible cable structure.

Application Scope:
Widely used in communication systems, radar equipment, navigation technologies, and other fields requiring reliable, high-frequency signal transmission.

Product Features:
This assembly features SSMA-J3507G-T RF connectors on both ends, paired with CXN3507 RF coaxial cable or compatible equivalents. It offers shielding effectiveness better than 90 dB, low signal loss, excellent flexibility, lightweight design, and strong phase stability. These characteristics make it ideal for applications where temperature stability, vibration resistance, and phase consistency are critical. Cable length L (mm) can be customized to meet user requirements.

Product Specifications and Testing Standards

SSMA Male Cable Assembly – Welded Type Compatible with AA1836 / CXN3507 Cable
SSMA Male Cable Assembly – Welded Type Compatible with AA1836 / CXN3507 Cable
测试图(L=1350mm)

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-1.13GHz

Dielectric withstanding voltage

 750V

VSWR

 ≤1.3

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤0.7dB(L=200mm)

Phase equalization

 ≤±3°

Insertion loss consistency

 ≤±0.1dB


Product Image Gallery

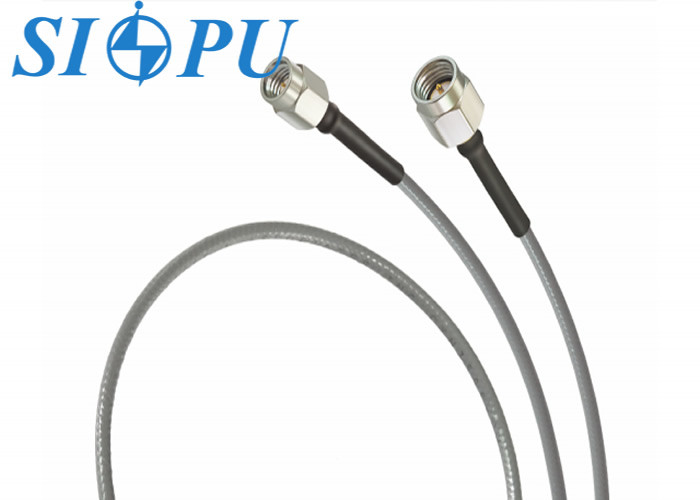

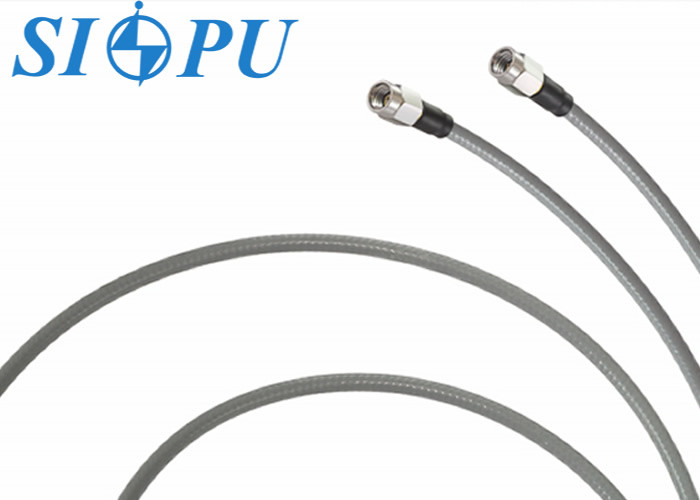

SSMA Male Cable Assembly – Welded Type Compatible with AA1836 / CXN3507 CableSSMA Male Cable Assembly – Welded Type Compatible with AA1836 / CXN3507 CableSSMA Male Cable Assembly – Welded Type Compatible with AA1836 / CXN3507 Cable
