Product name : SMA Male RF Coaxial Connector for CXN3506 Cable | High-Frequency, Low-Loss
Gender : Male
Type : Straight
Material : Brass,Stainless steel
Plating : Gold, Passivation
Durability : 500 times
Product Overview
The SMA series is a widely used RF coaxial connector featuring a compact threaded design. Known for its small size, broad frequency bandwidth, and excellent electrical performance, it's ideal for RF circuit connections between cables and microstrip lines in microwave equipment and digital communication systems.
Applications:
Networking systems
Wireless communication
Telecommunications
Product Features:
Designed for use with CXN3506 RF coaxial cable
Compact and lightweight for space-constrained environments
Delivers superior electrical performance
Easy to solder and assemble

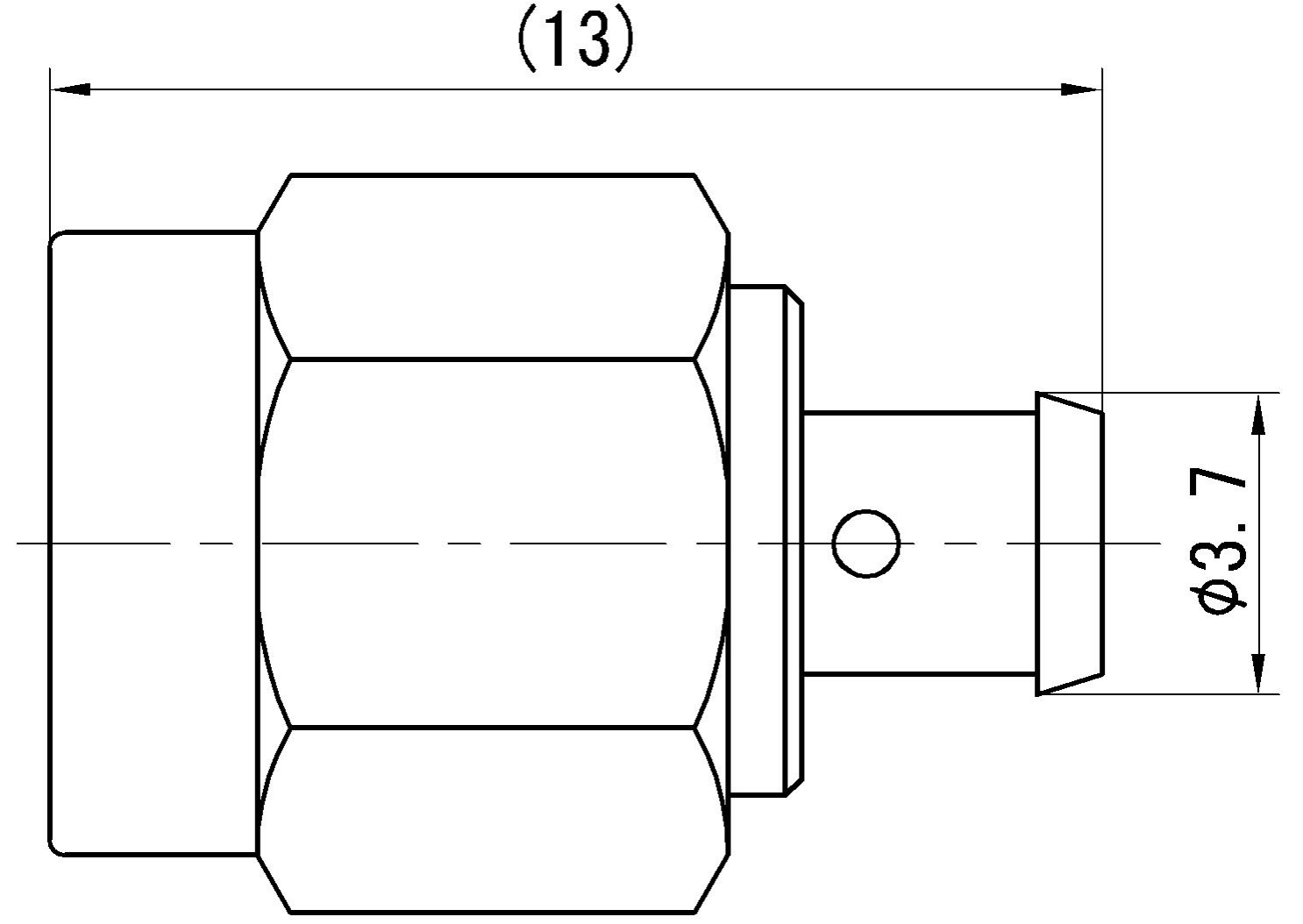

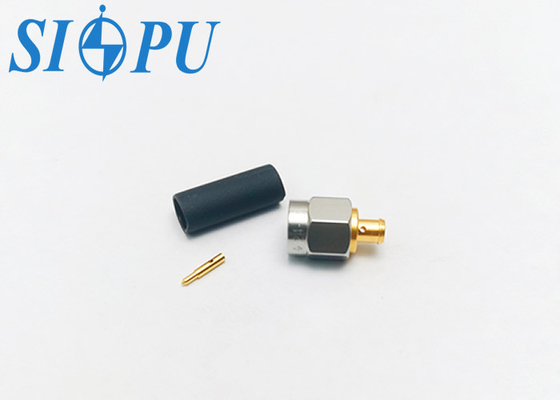

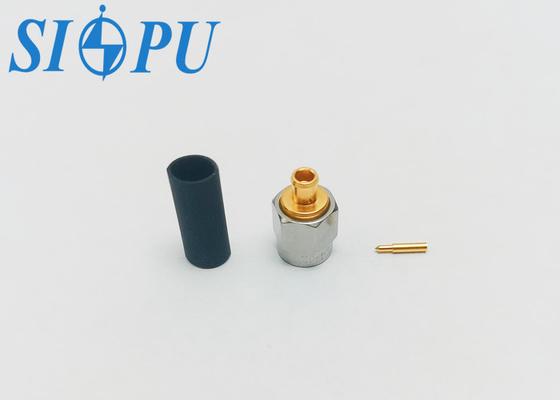

Product Appearance
Important Technical Parameter
Electrical property
| Temperature range | -65~+125℃ | ||
Characteristic impedance
| 50Ω | Frequency range | DC-18GHz | |
Dielectric withstanding voltage
| 1000V | VSWR | ≤1.15+0.02F(GHz) | |
Insulation resistance
| ≥5000MΩ | Insertion loss | ≤0.05√F(GHz)dB | |
Contact resistance
| Center conductor | ≤3.0mΩ | Mechanical property | |
Outer conductor | ≤2.0mΩ | Durability | 500 times |
Materials and Surface Treatment
Center conductor
| Brass, gold plating | Insulating medium | PTFE |
Outer conductor
| Brass, gold plating/ Stainless steel, passivating | Sealing ring | Silicon rubber |
