SMA Male to SMA Female RF Coaxial Adapter – Right Angle Type

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-JWK

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : SMA Male to SMA Female RF Coaxial Adapter – Right Angle Type

Gender : Male

Type : Right angle

Material Science : Brass

Plating : Gold

Durability : 500 times

Contact Now

SMA Male to SMA Female RF Coaxial Adapter – Right Angle Type

Product Overview

RF coaxial adapters serve as essential bridge components for reliable signal transfer within the same series or between different connector series. This right-angle adapter facilitates convenient routing in compact spaces while maintaining signal integrity.

Applications
Commonly used for system conversion and connection, especially in test cables, test instruments, communication modules, and RF circuits.

Key Features

Right-angle (bent) design for space-constrained installations

Compatible with both SMA and 2.92mm series connectors

Excellent electrical performance with low insertion loss

Compact size and high mechanical reliability

Ideal for high-frequency applications requiring stable, secure connections

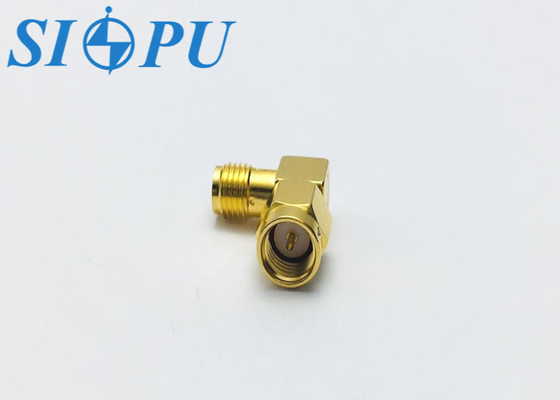

Product Appearance

SMA Male to SMA Female RF Coaxial Adapter – Right Angle Type

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.06+0.015F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.08√F(GHZ)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring Silicon rubber

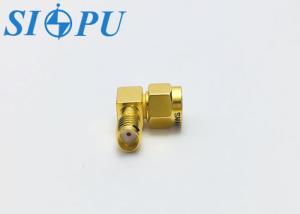

Product Image Gallery

SMA Male to SMA Female RF Coaxial Adapter – Right Angle TypeSMA Male to SMA Female RF Coaxial Adapter – Right Angle Type
