SMA Male RF Coaxial Connector – Compatible with RG316/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-J3

Certification : ISO9001-2017, RoHS, CE

Price : Discuss

Packaging Details : Carton

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : SMA Male RF Coaxial Connector – Compatible with RG316/U Cable

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

SMA Male RF Coaxial Connector – Compatible with RG316/U Cable

Product Overview

SMA series connectors are compact, threaded RF connectors widely used in microwave devices and digital communication systems. They are ideal for connecting microstrip lines or coaxial cables in high-frequency RF circuits, offering excellent electrical performance and mechanical reliability.

Applications
Networks, wireless communication systems, telecommunication infrastructure, test and measurement equipment, and RF modules.

Key Features

Compatible with RG316/U RF coaxial cable

Small size and lightweight, suitable for dense installations

High reliability and long service life

Excellent electrical performance across a wide frequency range

Secure threaded coupling for stable RF connections

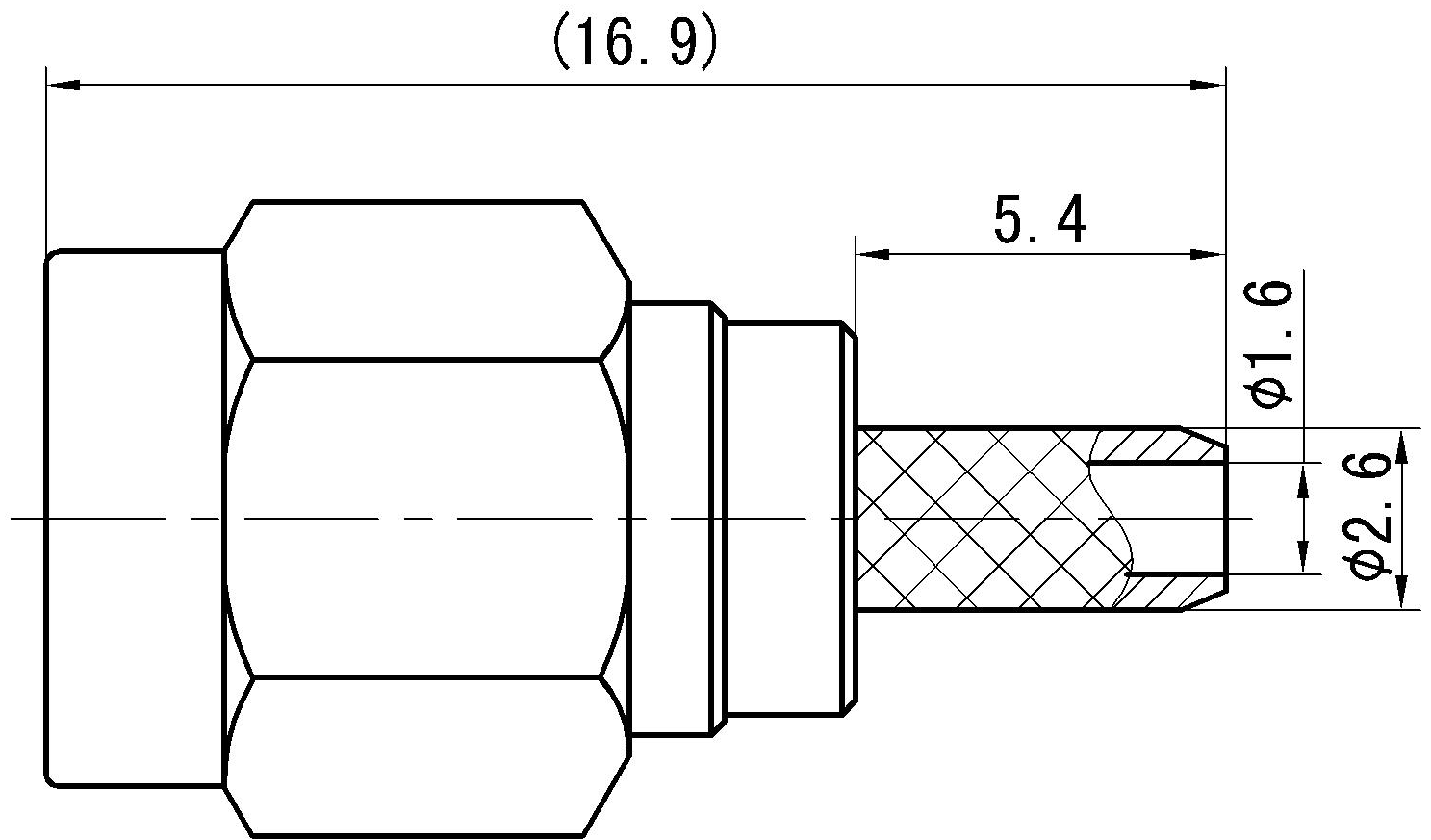

Product Appearance

SMA Male RF Coaxial Connector – Compatible with RG316/U Cable

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-12.4GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.15+0.02F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500 times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring Silicon rubber

Product Image Gallery

SMA Male RF Coaxial Connector – Compatible with RG316/U CableSMA Male RF Coaxial Connector – Compatible with RG316/U Cable
