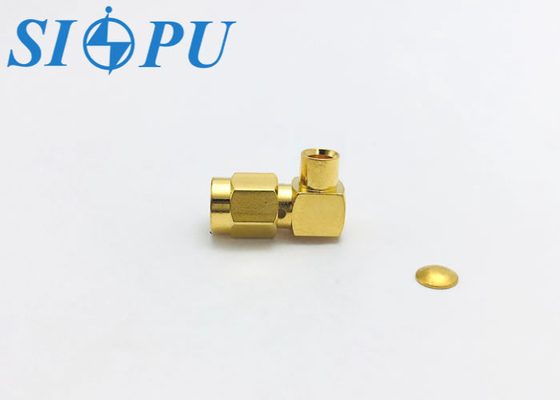

SMA Male RF Coaxial Connector – Right Angle, Compatible with 2# Semi-Rigid / Semi-Flexible Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-JWB2

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : SMA Male RF Coaxial Connector – Right Angle, Compatible with 2# Semi-Rigid / Semi-Flexible Cable

Gender : Male

Type : Right angle

Material Science : Brass

Plating : Gold

Durability : 500 times

Contact Now

SMA Male RF Coaxial Connector – Right Angle, Compatible with 2# Semi-Rigid / Semi-Flexible Cable

Product Overview

The SMA series is a compact, threaded coaxial connector known for its wide frequency bandwidth, superior mechanical and electrical performance, and small form factor. It is widely used in microwave communications, aerospace, and related high-frequency applications.

Applications:
Microwave communication, base stations, antennas, microwave measurement equipment, and more.

Product Features:

Right-angle configuration

Compatible with 2# semi-flexible or semi-rigid RF coaxial cables

Excellent mechanical strength and electrical performance

High resistance to environmental stress and vibration

Product Structure Diagram

SMA Male RF Coaxial Connector – Right Angle, Compatible with 2# Semi-Rigid / Semi-Flexible Cable

Important Technical Parameters

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.15+0.02F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.08√F(GHZ)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring Silicon rubber

Product Image Gallery

SMA Male RF Coaxial Connector – Right Angle, Compatible with 2# Semi-Rigid / Semi-Flexible CableSMA Male RF Coaxial Connector – Right Angle, Compatible with 2# Semi-Rigid / Semi-Flexible Cable
