SMA Female RF Coaxial Connectors Flange Mount Receptacle

  • 1
  • 2

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KFD891G

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : SMA Female RF Coaxial Connectors Flange Mount Receptacle

Gender : Female

Type : Straight

Material : Stainless steel

Plating : Passivation

Durability : 500 times

Contact Now

SMA Female RF Coaxial Connectors Flange Mount Receptacles

Product Overview

The SMA RF coaxial connector is one of the most widely used RF connectors due to its compact size, wide frequency bandwidth, excellent mechanical and electrical performance, and high reliability. It is commonly applied in microwave equipment and RF circuits of digital communication systems for connecting coaxial cables or microstrip lines.

Applications:
Wireless communication, telecommunications, networking, and related RF systems.

Product Features:

Four-hole flange mounting design

Shell features uniform point contact

Inner conductor tail: 0.5 mm slot width, 1.5 mm slot depth

Compact size with wide frequency bandwidth

Superior electrical performance

Strong compatibility and interchangeability with global standards

Product Structure Diagram

SMA Female RF Coaxial Connectors Flange Mount Receptacle

Important Technical Parameter

Characteristic impedance

50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

≥5000MΩ Insertion loss

≤0.05√F(GHZ)dB

Contact resistance

Center conductor

≤3.0mΩ Mechanical property

Outer conductor

≤2.0mΩ Durability

500 times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

Stainless steel, passivating / /

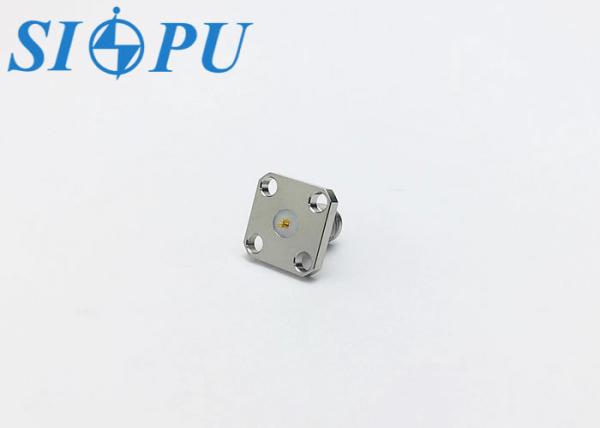

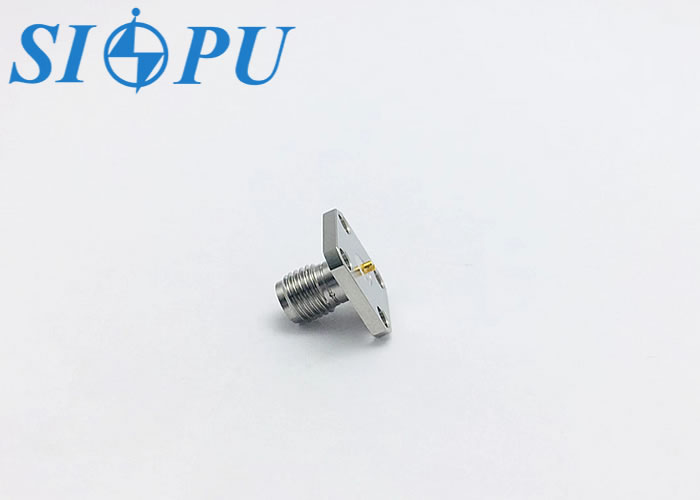

Product Image Gallery

SMA Female RF Coaxial Connectors Flange Mount ReceptacleSMA Female RF Coaxial Connectors Flange Mount Receptacle
