SMA Female RF Coaxial Connector – PCB Solder Type

Name: SMA Female RF Coaxial Connector PCB Solder Type
Brand: SIPU
Price: 1 USD

China SMA Female RF Coaxial Connector – PCB Solder Type factory

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KHD

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : SMA Female RF Coaxial Connector – PCB Solder Type

Gender : Female

Type : Straight

Material Science : Brass

Plating : Gold

Durability : 500 times

Contact Now

SMA Female RF Coaxial Connector – PCB Solder Type

Product Overview

The SMA series is a compact, threaded RF coaxial connector known for its excellent electrical performance, wide frequency bandwidth, and high reliability. As one of the most widely used RF connectors, it is well-suited for applications in microwave communications, aerospace navigation, and RF measurement equipment.

Applications
Wireless communication, telecommunications, networking equipment, microwave systems, and aerospace electronics.

Key Features

Four-leg through-hole PCB soldering for stable board-level mounting

Compact size with high mechanical durability

Wide frequency bandwidth with consistent signal integrity

Excellent electrical performance and low VSWR

High reliability for long-term and mission-critical RF applications

Compliant with MIL-C-39012 and IEC60169-15 standards

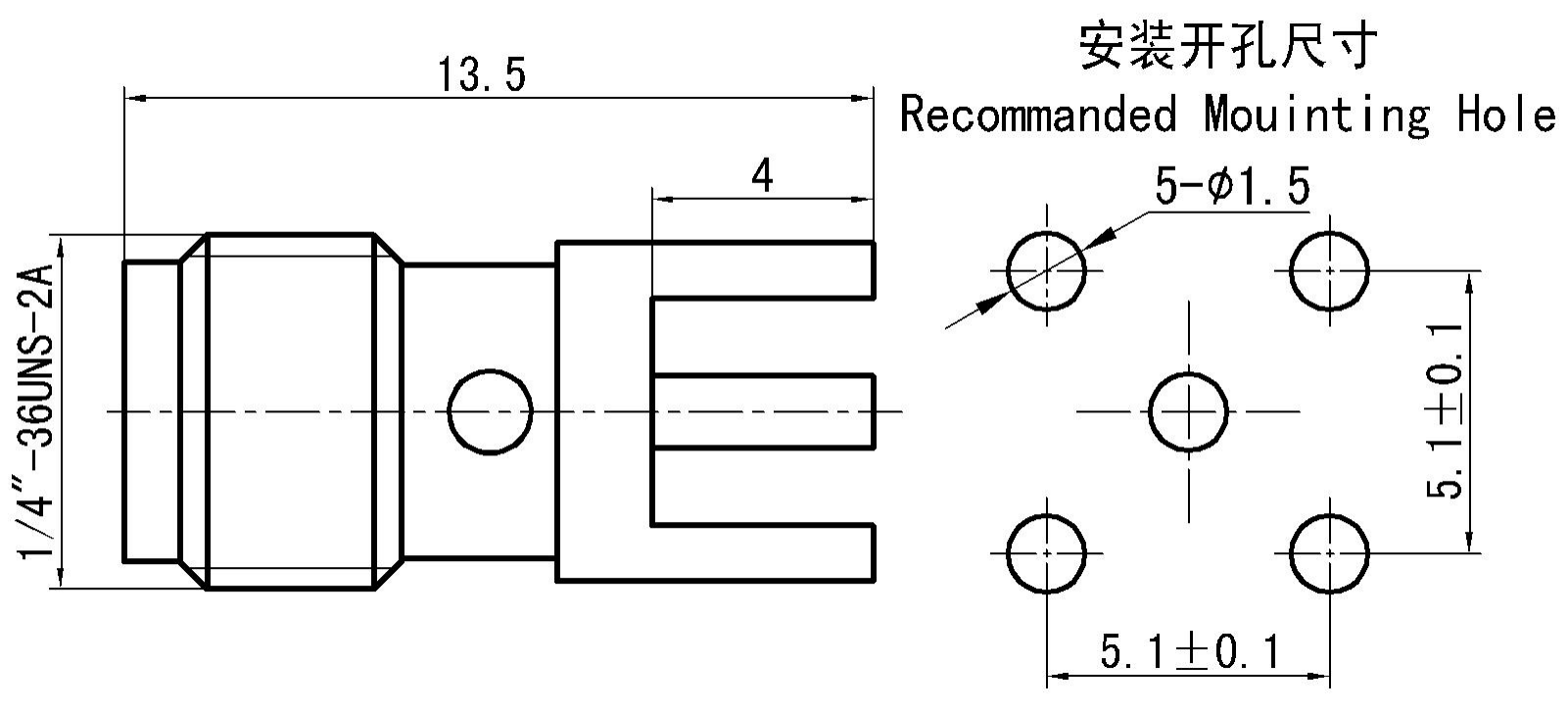

Product Appearance

Important Technical Parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.05+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.05√F(GHZ)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

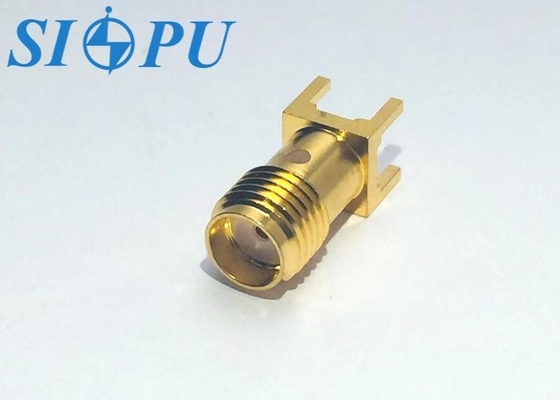

Product Image Gallery

Product Tags:

female rf coaxial connector

brass rf coaxial connector

brass female coaxial connector

SMA Female RF Coaxial Connector – PCB Solder Type Images
