SMA Female Thread-Mount RF Coaxial Connector – CXN3506

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KY3506

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : $1.4 - $2.4，Price negotiable for large quantities

Delivery Time : 6-8 Weeks

Supply Ability : 100000 pcs/yesr

Produce name : SMA Female Thread-Mount RF Coaxial Connector – CXN3506

Gender : Female

Type : Straight

Meterial : Brass

Plating : Gold

Durability : 500 times

Contact Now

SMA Female Thread-Mount RF Coaxial Connector – CXN3506

Product Overview

The SMA series connector is a widely used, compact coaxial connector with a threaded coupling mechanism. It offers excellent electrical performance, small size, and strong environmental resistance, making it ideal for digital communication systems and microwave equipment.

Applications:
Wireless communication, telecommunications, test equipment, network systems, and other RF applications.

Product Features:
Designed to mate with CXN3506 cable, this connector features nut-based installation. It offers wide frequency bandwidth, outstanding signal performance, high reliability, and long service life.

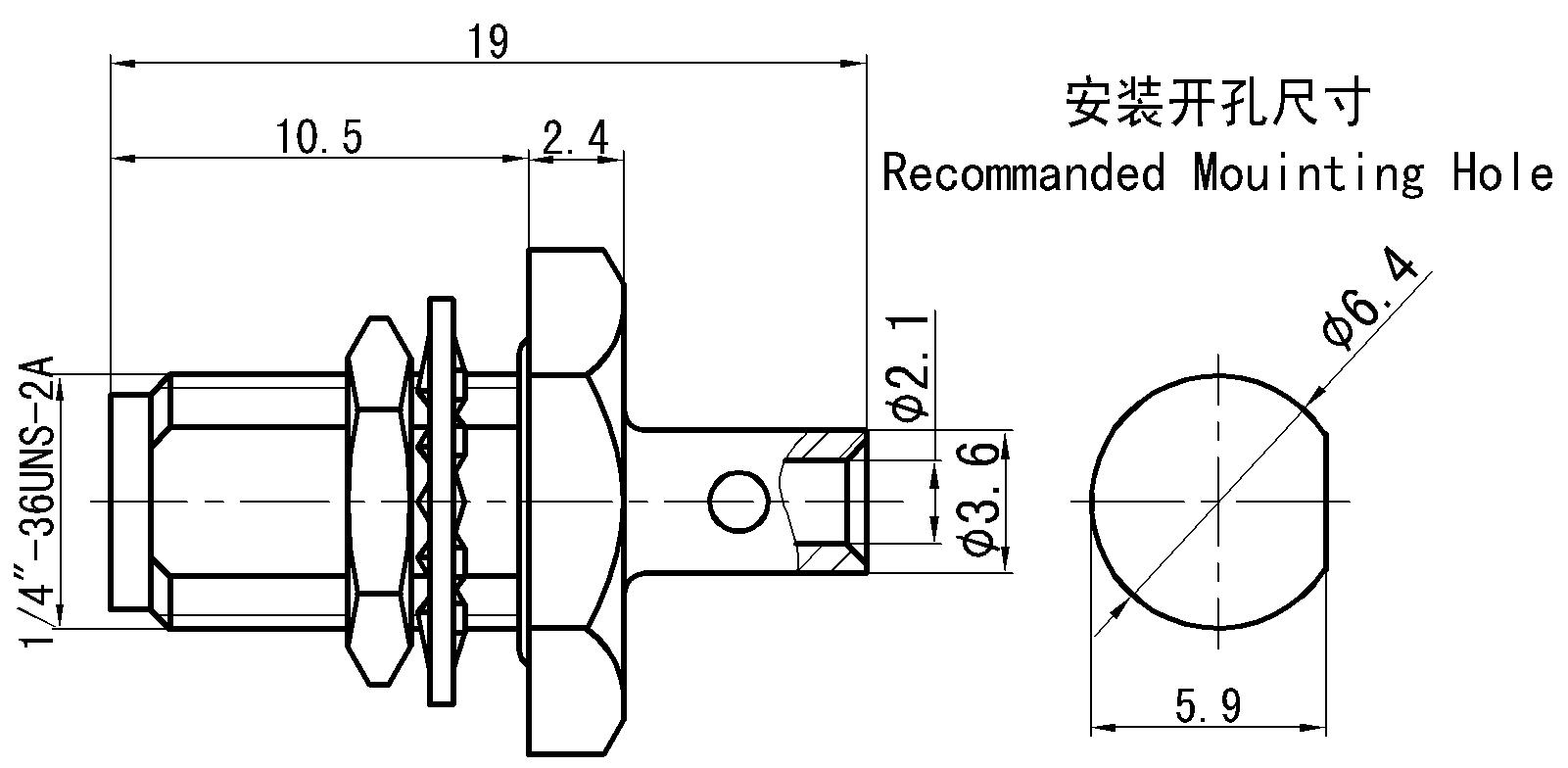

Product Appearance

SMA Female Thread-Mount RF Coaxial Connector – CXN3506

Important Technical Parameters

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

Brass, gold plating

 Sealing ring Silicon rubber

Product Image Gallery

SMA Female Thread-Mount RF Coaxial Connector – CXN3506SMA Female Thread-Mount RF Coaxial Connector – CXN3506
