BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Brand Name : SIPU

Model Number : BMA-JY3Y

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 100

Price : DISCUSS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 120000

Delivery Time : 5-8works

Packaging Details : Carton

Product name : BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Gender : Straight

Type : Male

Material : Brass

Plating : Gold

Characteristic impedance : 50Ω

Durability : 500 times

Contact Now

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Product Overview

The BMA series is a blind-mate, slide-on RF coaxial connector known for its compact size and high reliability. It features a spring-loaded contact structure that ensures stable mechanical engagement and excellent electrical performance. This connector is ideal for modular system integration where quick, alignment-free mating is required.

Application Scope

Module-to-module connections in chassis and cabinets

Radar and microwave communication systems

Aerospace and defense equipment

Product Features

Straight male BMA connector

Threaded mount for secure installation

Compatible with 2# flexible cable RG316/U

Compact design with wide bandwidth capability

Quick and easy blind docking with reliable contact

Product Specifications

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.15+0.012F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

/

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

 PTFE

Outer conductor

Brass, gold plating

Sealing ring

Silicon rubber

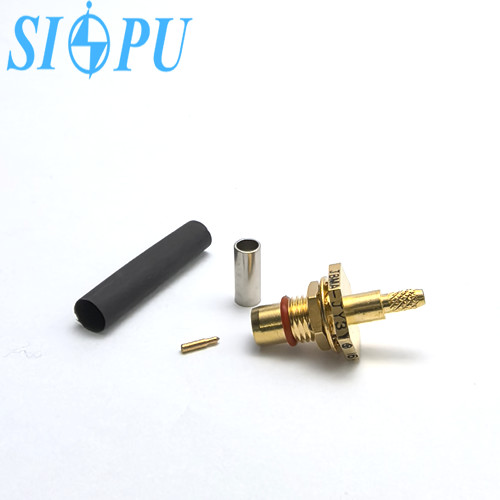

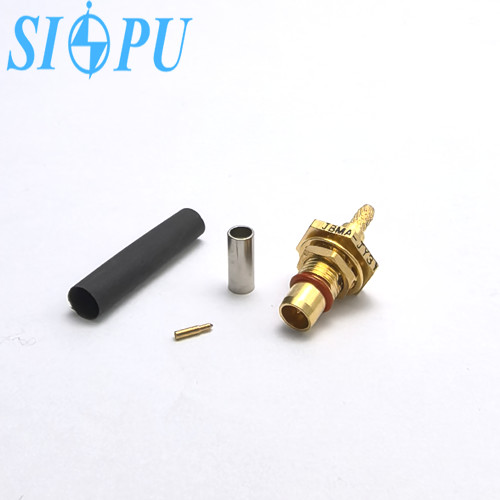

Product Image Gallery

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U CableBMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U CableBMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U CableBMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
