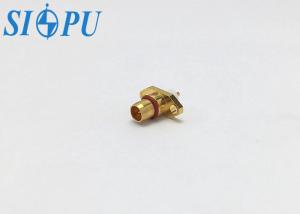

BMA RF Coaxial Connector – Straight Microstrip Type, Two-Hole Flange Mount

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : BMA-JFD1

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : DISCUSS

Delivery Time : 5-8works

Supply Ability : 120000

Product name : BMA RF Coaxial Connector – Straight Microstrip Type, Two-Hole Flange Mount

Gender : Straight

Type : Male

Material : Brass

Plating : Gold

Characteristic impedance : 50Ω

Durability : 500 times

Contact Now

BMA RF Coaxial Connector – Straight Microstrip Type, Two-Hole Flange Mount

Product Overview

The BMA series RF coaxial connector, also known as a blind-mate connector, is designed for high-frequency microwave circuit interconnections. It is especially well-suited for blind mating between chassis and cabinet modules in compact, modular systems. The connector complies with IEC 61169-33 standards, ensuring reliable performance and system compatibility.

Applications

Modular radar systems

Cabinet-to-chassis interconnections

Wireless communication equipment

High-frequency microwave subsystems

Product Features

Straight microstrip interface

Two-hole flange mount for secure installation

Blind-mate slide-on design for fast and easy docking

Operating frequency up to 18 GHz

Compact size with superior electrical performance

Product Specifications

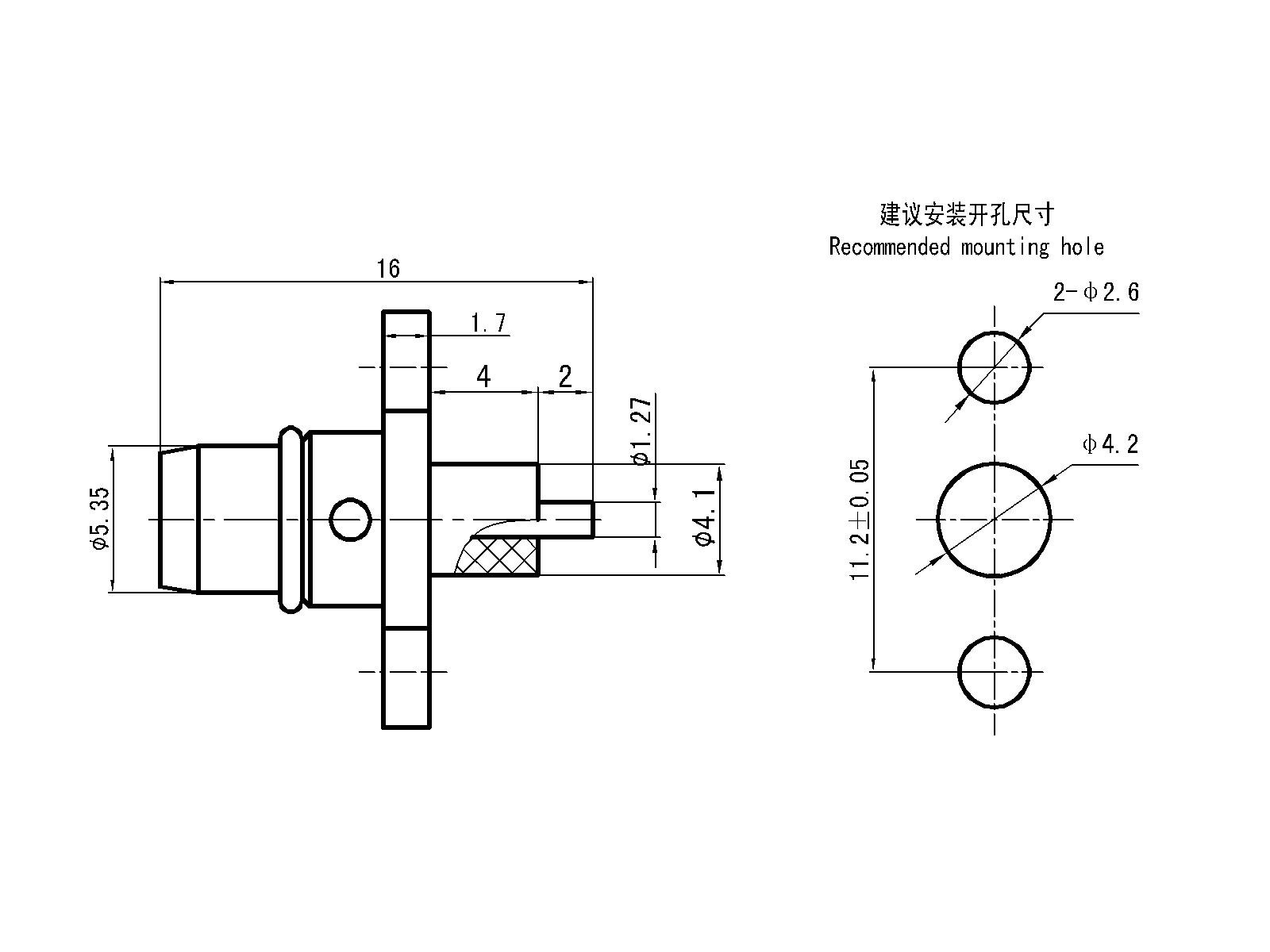

BMA RF Coaxial Connector – Straight Microstrip Type, Two-Hole Flange Mount

Important Technical Parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.15+0.012F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

≤0.08√F(GHz)dB

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Brass, gold plating

Insulating medium

 PTFE

Outer conductor

Brass, gold plating

Sealing ring

Silicon rubber

Product Image Gallery

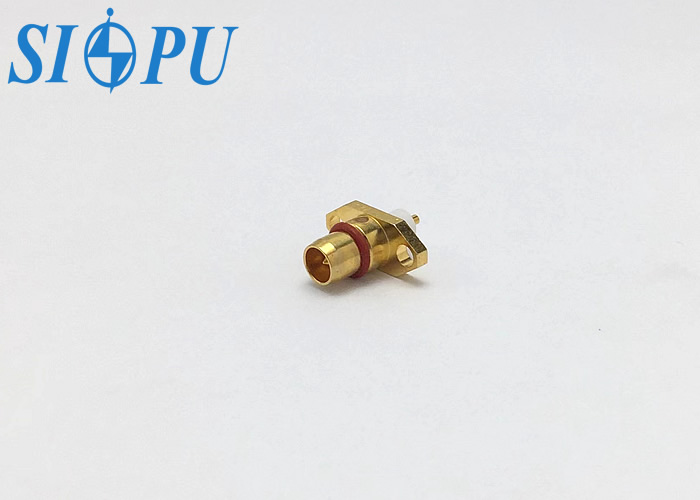

BMA RF Coaxial Connector – Straight Microstrip Type, Two-Hole Flange Mount
