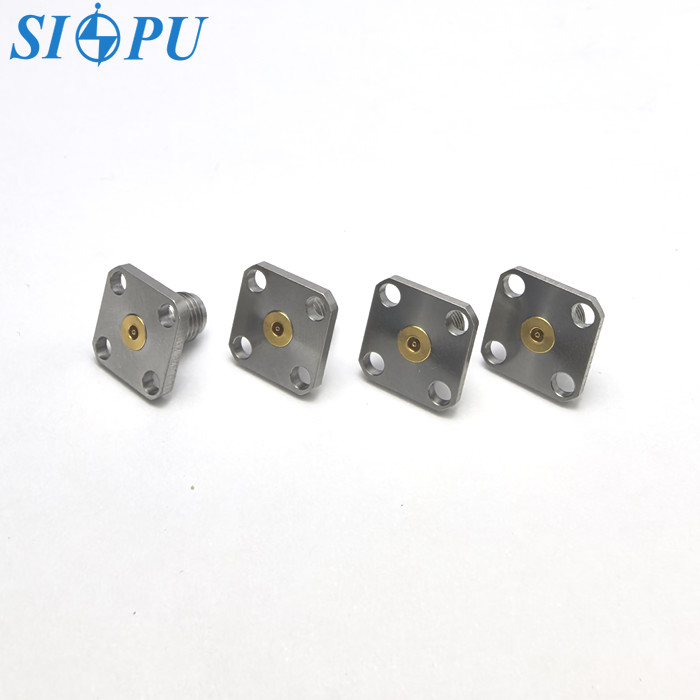

2.92mm Female RF Coaxial Connector – 4-Hole Flange Mount, Panel Socket

Name: 292mm Female RF Coaxial Connector 4Hole Flange Mount Panel Socket
Brand: SIPU
Price: 1 USD

China 2.92mm Female RF Coaxial Connector – 4-Hole Flange Mount, Panel Socket factory

Brand Name : SIPU

Model Number : 2.92-KFD-4G

Certification : ISO9001-2017, RoHS, CE

Place of Origin : China

MOQ : 50

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs/year

Delivery Time : 6-8weeks

Packaging Details : Carton

Product name : 2.92mm Female RF Coaxial Connector – 4-Hole Flange Mount, Panel Socket

Gender : Female

Type : Straight

Characteristic impedance : 50Ω

Frequency range : DC-40GHz

Durability : 500times

Insulating medium : PEI

Material : Stainless steel

Plating : Passivation

Contact Now

2.92 Fem2.92mm Female RF Coaxial Connector – 4-Hole Flange Mount, Panel Socket

Product Overview

The 2.92mm series, also known as the K series, is a high-precision coaxial connector developed from the SMA series. It features an air dielectric interface, compact size, lightweight construction, and is suitable for high-frequency applications. The K series is fully compatible with both SMA and 3.5mm connectors.

Applications:
Widely used in modern precision measurement systems and various millimeter-wave communication devices.

Product Features:

Four-hole flange mounting (flange size: 12.7 × 12.7 mm)

Outer conductor protrusion height: 0.1–0.2 mm

Reliable connection and long service life

Compact design with excellent electrical performance

Operates at high frequencies with stable signal transmission

Product Specifications

2.92mm Female RF Coaxial Connector – 4-Hole Flange Mount, Panel Socket

Important Technical Parameters

Electrical property			Temperature range	-55～+125℃
Characteristic impedance		50Ω	Frequency range	DC-40GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.1+0.01F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.05√F(GHz)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium copper, gold plating

Insulating medium

PEI

Outer conductor

Stainless steel,

passivating
