RF Coaxial Cable Adapter – SMA Female to SSMB Female

Xi'an Sipu RF Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

RF Coaxial Cable Adapter – SMA Female to SSMB Female

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C,T/T,Western Union

Model Number : SMA/SSMB-KK

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weekd

Supply Ability : 120000pcs/year

Product name : RF Coaxial Cable Adapter – SMA Female to SSMB Female

Material : Brass

Plating : gold

Durability 500 times : 500 times

Contact Now

RF Coaxial Cable Adapter – SMA Female to SSMB Female

Product Overview

RF coaxial adapters are essential for enabling accurate interconnection between connectors of different or identical series. They serve as a reliable bridge to support seamless signal transmission and system compatibility.

Applications
This adapter is widely used for system conversion and connection, particularly in RF test instruments, measurement setups, and coaxial test cables.

Product Features

Interface: SMA Male to SSMB Male

Compact form factor, ideal for space-constrained applications

High durability and excellent electrical performance

Ensures stable signal transmission and long service life

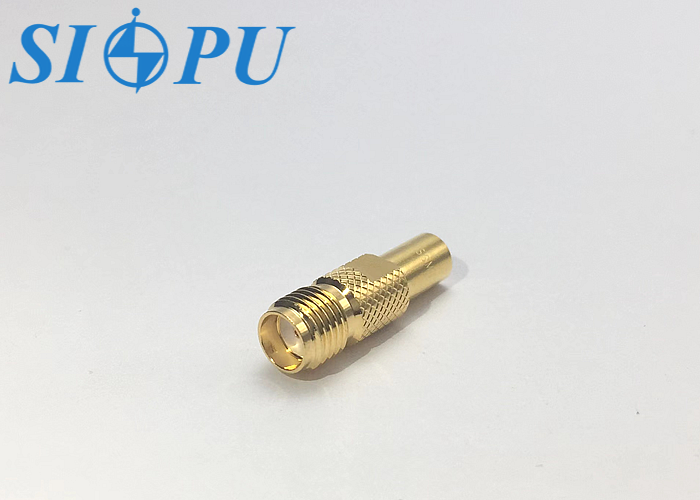

Product Appearance

RF Coaxial Cable Adapter – SMA Female to SSMB Female

Important Technical Parameter

Electrical property

Temperature range -55~+125℃

Characteristic impedance

50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

1000V VSWR ≤1.35

Insulation resistance

≥1000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

Center conductor ≤5.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

Brass,gold plating / /

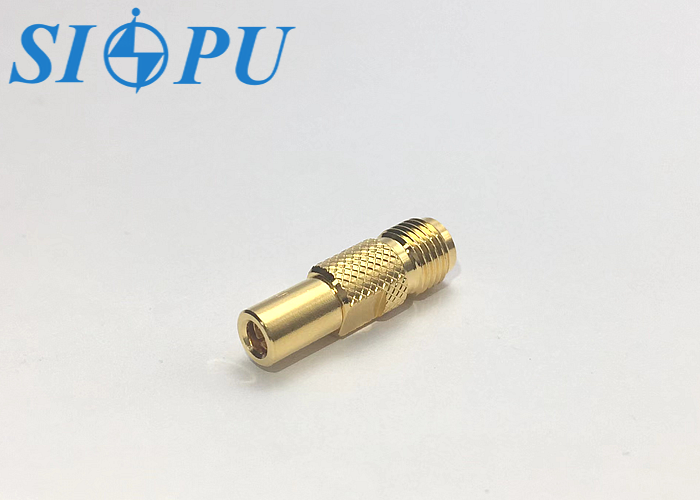

Product Image Gallery

RF Coaxial Cable Adapter – SMA Female to SSMB FemaleRF Coaxial Cable Adapter – SMA Female to SSMB Female
