J30J 31-Core Male Straight Solder PCB Micro Rectangular Connector

Brand Name : SIPU

Model Number : J30J-31TJN-J

Certification : ISO9001, RoHS, CE

Place of Origin : China

MOQ : 50

Price : Discuss

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000000pcs/year

Delivery Time : 8-12work days

Packaging Details : Carton

Product name : J30J 31-Core Male Straight Solder PCB Micro Rectangular Connector

Gender : Male

Working current : 3A MAX

insulation resistance : ≥5000MΩ

Dielectric Strength : 600V

ontact resistance : ≤8.0mΩ

Contact spacing : 1.27mm

Contact row spacing : 1.1mm

Number of cores of the same type : 9、15、21、25、31、37、51、66、74、100

Contact Now

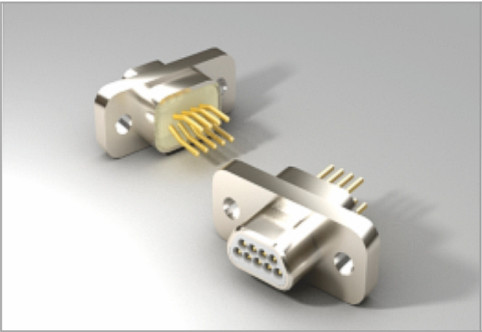

J30J 31-Core Male Straight Solder PCB Micro Rectangular Connector

Product Overview

The J30J series micro rectangular connector is widely used in high-reliability electronic systems. It features a lightweight aluminum alloy housing and twisted wire pins as inner contacts, offering a unique and dependable connection solution. The product fully complies with GJB2446A and MIL-DTL-83513 standards, ensuring performance consistency and global compatibility.

Applications
Designed for lightweight, high-density systems, the connector is ideal for applications requiring compact and reliable interconnects—commonly used in aerospace, defense, industrial control, and communication equipment.

Key Features

31-core male connector with twisted wire contacts

Straight solder pin configuration for PCB mounting

Dual-row design with 2.54mm row spacing and 1.27mm pin pitch

Compact size and low insertion force for easy installation

Excellent electromagnetic shielding performance

Lightweight, durable aluminum alloy shell

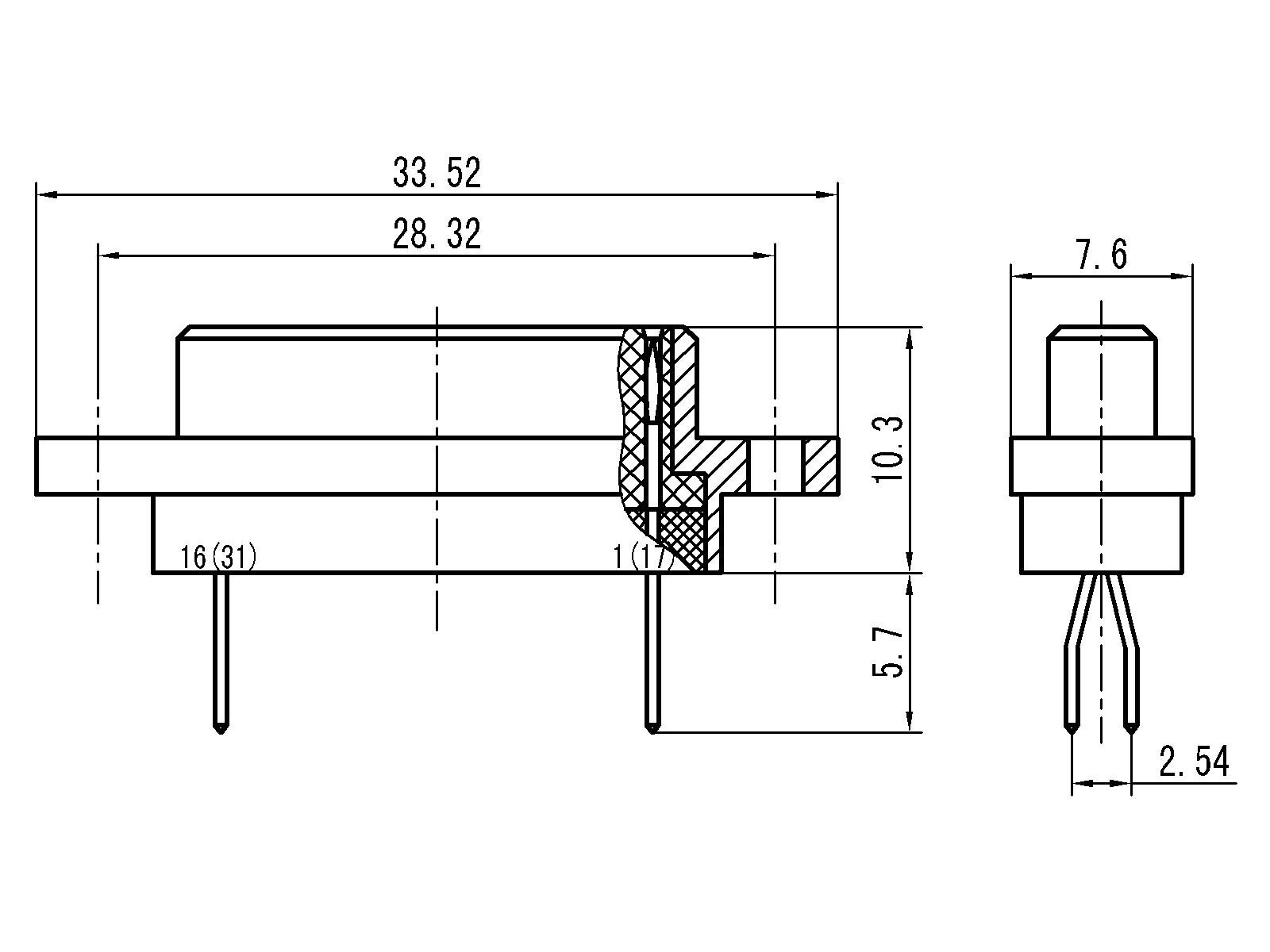

Product Specifications

J30J 31-Core Male Straight Solder PCB Micro Rectangular Connector

J30J 31-Core Male Straight Solder PCB Micro Rectangular Connector

J30J 31-Core Male Straight Solder PCB Micro Rectangular Connector

J30J 31-Core Male Straight Solder PCB Micro Rectangular Connector

Important Technical Parameters

Electrical property

Temperature range

-55~+125℃

Working current

3A MAX

Contact spacing

1.27mm

Dielectric withstanding voltage

600V

Contact row spacing

1.1mm

Insulation resistance

≥5000MΩ

Adaptive wire cross-sectional area

0.05~0.15mm²

Contact resistance

≤8.0mΩ

Number of cores of the same type

Mechanical life

500 times 9,15,21,25,31,37,51,66,74,100

Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PPS

Outer conductor

Aluminum alloy,nickel plating

/ /

Product Image Gallery

J30J 31-Core Male Straight Solder PCB Micro Rectangular ConnectorJ30J 31-Core Male Straight Solder PCB Micro Rectangular ConnectorJ30J 31-Core Male Straight Solder PCB Micro Rectangular Connector

J30J 31-Core Male Straight Solder PCB Micro Rectangular Connector
