BNC Female RF Coaxial Connector – Thread Mount, for RG142/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : Gender

Model Number : BNC-KY5

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Product name : BNC Female RF Coaxial Connector – Thread Mount, for RG142/U Cable

Gender : Female

Type : Straight

Material : Brass

Plating : Nickle

Insulating medium : PTFE

Durability : 500 times

Contact Now

BNC Female RF Coaxial Connector – Thread Mount, for RG142/U Cable

Product Overview

The BNC series is a bayonet-style RF coaxial connector developed and manufactured in accordance with MIL-C-39012/16–24 standards. It features fast connection and disconnection, reliable electrical contact, and full interchangeability with similar international products. This makes it particularly suitable for applications requiring frequent mating and unmating.

Applications:
Widely used in electronic instruments, radio equipment, and the transmission of analog or digital video signals.

Product Features:

Screw-mounted female connector

Compatible with RG142/B RF coaxial cable

Bayonet coupling mechanism for quick and secure connection

Excellent contact reliability and vibration resistance

Ideal for environments requiring frequent, stable connections

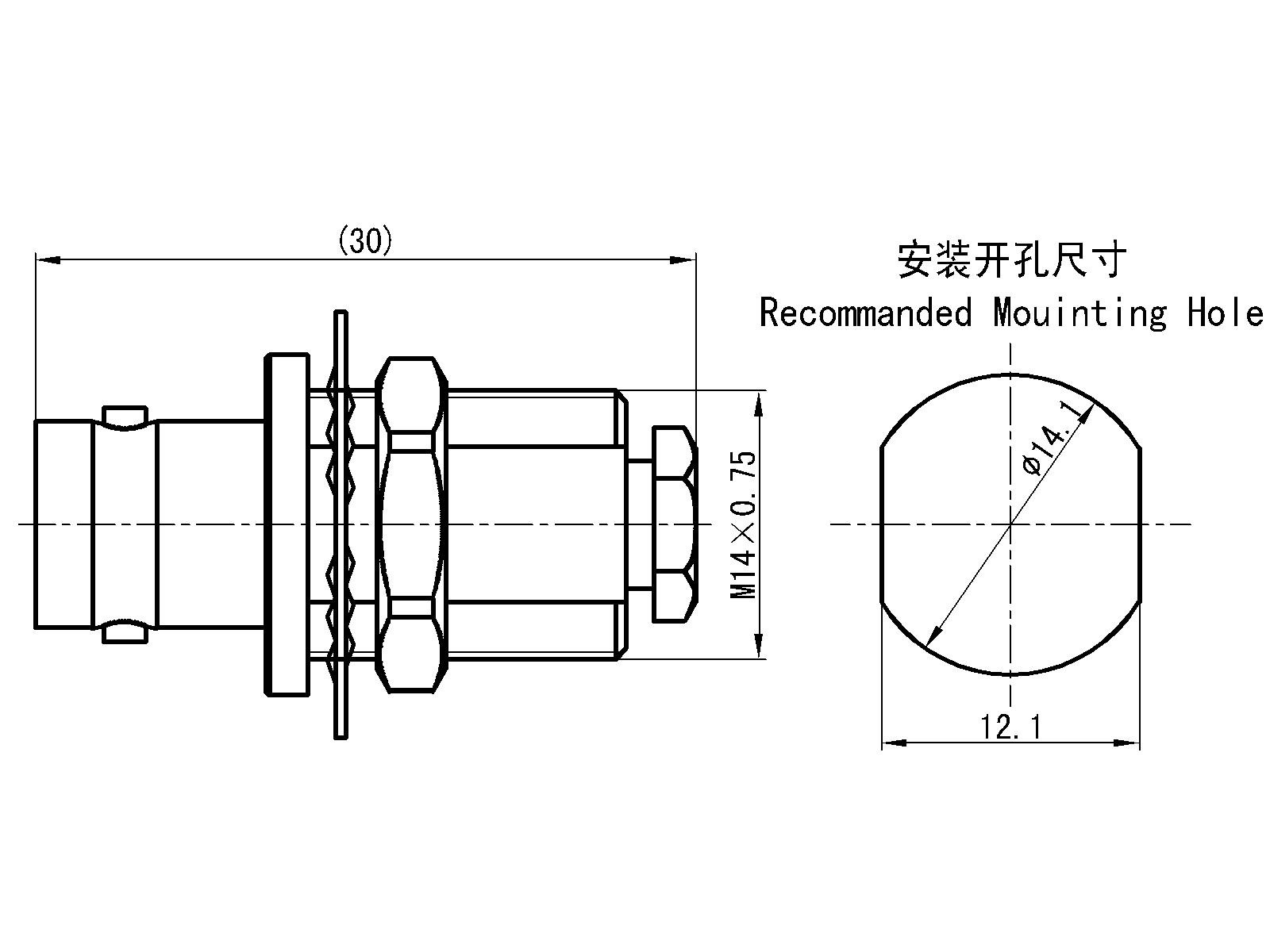

Product Specifications

BNC Female RF Coaxial Connector – Thread Mount, for RG142/U Cable

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,nickel plating / /

Product Image Gallery

BNC Female RF Coaxial Connector – Thread Mount, for RG142/U CableBNC Female RF Coaxial Connector – Thread Mount, for RG142/U Cable
