Brand Name : SIPU
Place of Origin : CHINA
MOQ : 100
Payment Terms : L/C, T/T, Western Union
Model Number : SMP-KK7
Certification : ISO9001-2017, RoHS, CE
Packaging Details : Carton
Price : Discuss
Delivery Time : 3-6 Weeks
Supply Ability : 100000pcs/year
Product name : SMP Female to Female RF Coaxial Adapter – 8.2 mm Length
Characteristic impedance : 50Ω
Dielectric withstanding voltage : 500V
Insulation resistance : ≥5000MΩ
Durability : 500 times
Gender : Female
Type : Straight
Material : Beryllium bronze
Plating : Gold
Product Overview
SMP series connectors are miniature, high-frequency RF coaxial interfaces designed for blind-mate applications. They offer excellent electrical performance, fast and secure push-on coupling, and strong vibration resistance. The interface accommodates limited axial and radial misalignment, making it especially suitable for high-density, board-to-board or module-to-chassis interconnects.
Applications:
Commonly used in communication base stations, radar systems, aerospace equipment, and antennas.
Product Features:
SMP female connectors on both ends
Ultra-compact size
High vibration resistance
Supports limited axial and radial float
Excellent electrical performance

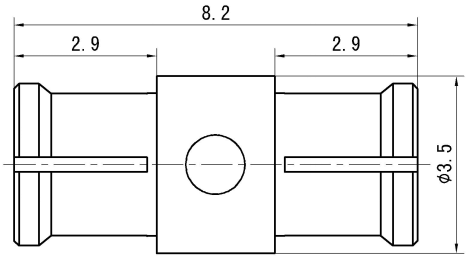

Product Appearance
Important Technical Parameters
Electrical property
| Temperature range | -65~+125℃ | ||
Characteristic impedance
| 50Ω | Frequency range | DC-40GHz | |
Dielectric withstanding voltage
| 500V | VSWR | ≤1.5 | |
Insulation resistance
| ≥5000MΩ | Insertion loss | ≤0.07√F(GHz)dB | |
Contact resistance
| Center conductor | ≤6.0mΩ | Mechanical property | |
Outer conductor | ≤2.0mΩ | Durability | 500times |
Materials and Surface Treatment
Center conductor
| Beryllium bronze, gold plating | Insulating medium | PTFE |
Outer conductor
| Beryllium bronze, gold plating | / | / |

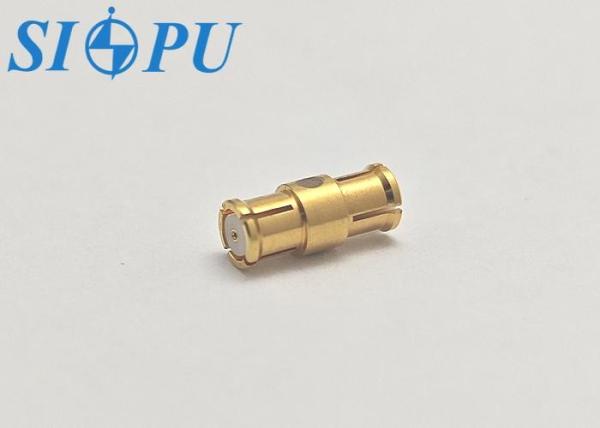

Product Image Gallery
![]() |
SMP Female to Female RF Coaxial Adapter – 8.2 mm Length Images |
