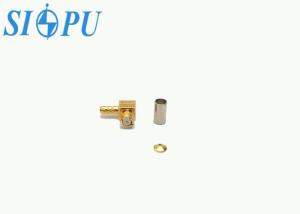

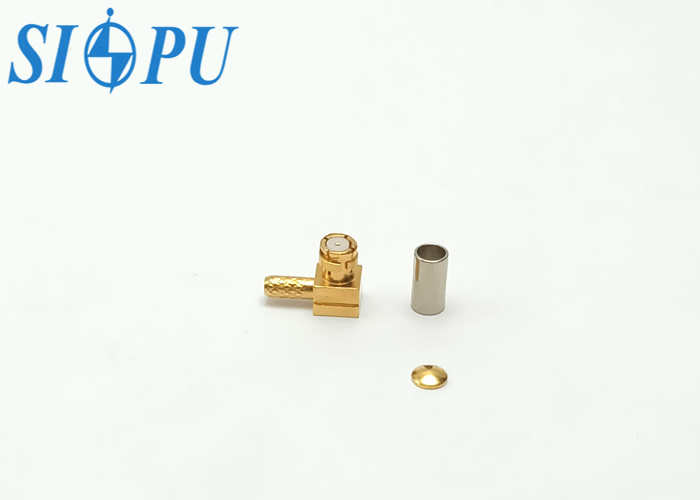

SMP Female RF Coaxial Connector – Right Angle, Compatible with RG178/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMP-KW2

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 3-6 Weeks

Supply Ability : 100000pcs/year

Product name : SMP Female RF Coaxial Connector – Right Angle, Compatible with RG178/U Cable

Dielectric withstanding voltage : 500V

Insulation resistance : ≥5000MΩ

Temperature range : -65～+125℃

Gender : Female

Type : Right angle

Material : Beryllium bronze

Plating : Gold

Durability : 500 times

Contact Now

SMP Female RF Coaxial Connector – Right Angle, Compatible with RG178/U Cable

Product Overview

SMP series products are ultra-miniature, plug-in self-locking RF coaxial connectors featuring compact size, light weight, high-frequency capability, and excellent mechanical and electrical performance. With strong vibration resistance and blind-mating capability, they are particularly well-suited for high-density connections between printed circuit boards, chassis, and enclosures.

Applications:
Communication base stations, cable assemblies, radar systems, aerospace, and other high-frequency environments.

Product Features:

Right-angle design

Mated with RG 178/U RF coaxial cable

Ultra-compact and lightweight

Quick and secure blind mating

Strong vibration resistance

Stable performance in harsh environments

Product Structure Diagram

SMP Female RF Coaxial Connector – Right Angle, Compatible with RG178/U Cable

Important Technical Parameters

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-12.4GHz

Dielectric withstanding voltage

 500V VSWR ≤1.15+0.02F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Beryllium bronze, gold plating Sealing ring /
