SSMP Female Right-Angle RF Connector for CXN3506 Cable

Name: SSMP Female RightAngle RF Connector for CXN3506 Cable
Brand: SIPU
Price: 1 USD

China SSMP Female Right-Angle RF Connector for CXN3506 Cable factory

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SSMP-KW3506

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 3-6 Weeks

Supply Ability : 100000pcs/year

Product name : SSMP Female Right-Angle RF Connector for CXN3506 Cable

Dielectric withstanding voltage : 500V

Temperature range : -65～+125℃

Frequency range : DC-26.5GHz

Durability : 500 times

Gender : Female

Type : Right angle

Material : Beryllium bronze

Plating : Gold

Contact Now

SSMP Female Right-Angle RF Connector for CXN3506 Cable

Product Overview

The SSMP connector is a push-in, ultra-miniature RF coaxial connector, designed for high-density modular applications. Structurally similar to SMP connectors but even more compact, it accommodates radial and axial misalignment, making it ideal for precision systems requiring secure, space-saving connections.

Key Features:

Right-angle SSMP female connector

Compatible with CXN3506 RF coaxial cable

Supports compact installation with excellent RF performance

Strong resistance to vibration and harsh environments

Frequency support up to 40GHz (dependent on cable assembly)

Applications:

Quantum computing systems

High-frequency antennas

Test and measurement instruments

Broadband and modular RF installations

Why Choose SSMP?

Its ultra-small footprint and push-in mating style make the SSMP connector a top choice for next-gen RF designs requiring performance in a compact form.

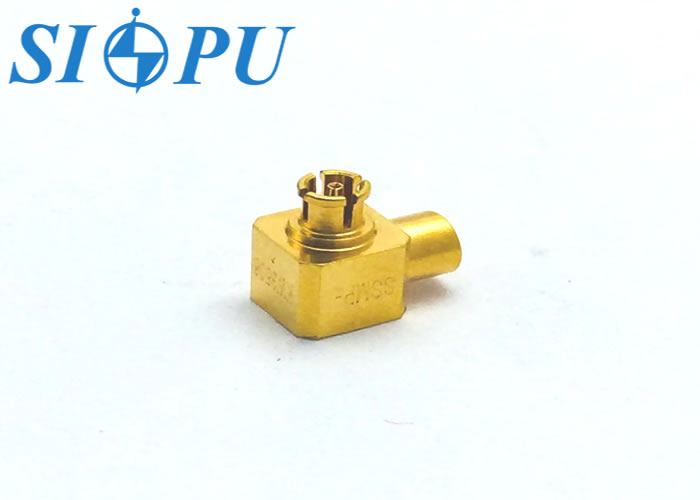

Product Appearance

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-26.5GHz
Dielectric withstanding voltage		500V	VSWR	≤1.45
Insulation resistance		≥5000MΩ	Insertion loss	≤0.12√F(GHz)dB
Contact resistance	Center conductor	≤6.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PEI

Outer conductor

Beryllium bronze, gold plating
