SMP Male RF Coaxial Connector – Limited Detent, Microstrip Type, PCB Solder

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMP-JHD

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 3-6 Weeks

Supply Ability : 100000pcs/year

Product name : SMP Male RF Coaxial Connector – Limited Detent, Microstrip Type, PCB Solder

Characteristic impedance : 50Ω

Temperature range : -65～+125℃

Frequency range : DC-40GHz

Durability : 500 times

Gender : Male

Type : Straight

MaterialBrass : Stainless steel

Plating : Passivation

Contact Now

SMP Male RF Coaxial Connector – Limited Detent, Microstrip Type, PCB Solder

Product Overview

The SMP connector is an ultra-miniature, push-on/self-locking RF coaxial connector known for its compact size, light weight, high-frequency capability, and quick blind-mating functionality. It supports a degree of axial and radial float, making it ideal for high-density modular applications such as matrix antennas, radar systems, and aerospace electronics.

Applications
Widely used in matrix antennas, radar systems, aerospace modules, communication equipment, and other densely packed RF assemblies.

Key Features

Limited detent interface for secure yet easy blind-mating

Designed for microstrip PCB integration with solder (cartridge) termination

Compact and lightweight, ideal for space-constrained layouts

High-frequency performance with excellent electrical characteristics

Strong vibration resistance and mechanical stability

Product Appearance

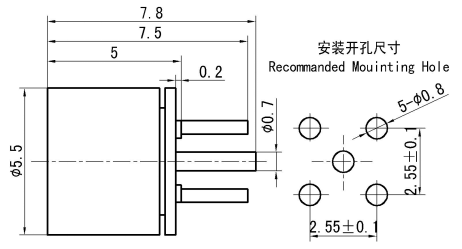

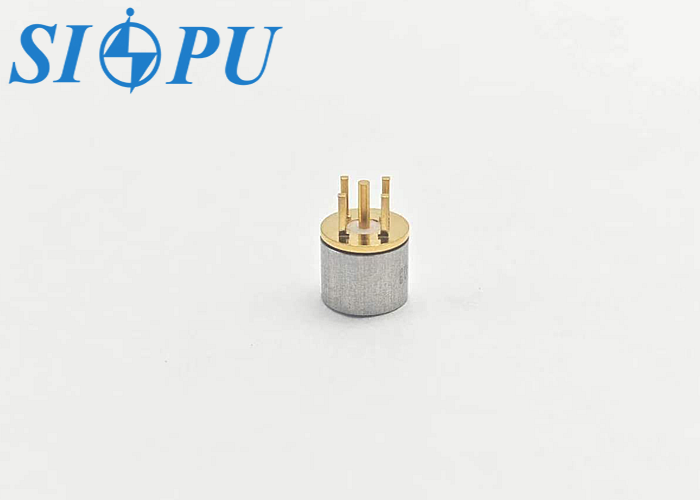

SMP Male RF Coaxial Connector – Limited Detent, Microstrip Type, PCB Solder

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-40GHz

Dielectric withstanding voltage

 500V VSWR ≤1.1+0.01F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

Stainless steel, passivating+

Brass, gold plating

 / /

Product Image Gallery

SMP Male RF Coaxial Connector – Limited Detent, Microstrip Type, PCB Solder


Product Tags:

Microstrip RF Connectors



SMP Male RF Connectors



SMP Male PCB Soldering connector


China SMP Male RF Coaxial Connector – Limited Detent, Microstrip Type, PCB Solder factory

SMP Male RF Coaxial Connector – Limited Detent, Microstrip Type, PCB Solder Images
