SMP Male RF Coaxial Connector – PCB Mount, Solder Type

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMP-JHD21-S

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 3-6 Weeks

Supply Ability : 100000pcs/year

Product name : SMP Male RF Coaxial Connector – PCB Mount, Solder Type

Dielectric withstanding voltage : 500V

Insulation resistance : ≥5000MΩ

Temperature range : -65～+125℃

Durability : 500 times

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Contact Now

SMP Male RF Coaxial Connector – PCB Mount, Solder Type

Product Overview

The SMP connector is an ultra-miniature, push-on RF coaxial connector designed for high-frequency, high-data-rate applications in compact modules. Its self-aligning interface supports quick and reliable connections in dense circuit layouts.

Scope of Application:
Commonly used in quantum computing, broadband systems, antennas, and test & measurement equipment.

Product Features:
Typically soldered to printed circuit boards (PCBs), it offers excellent electrical performance, long service life, compact size, and strong resistance to environmental stress.

Product Appearance

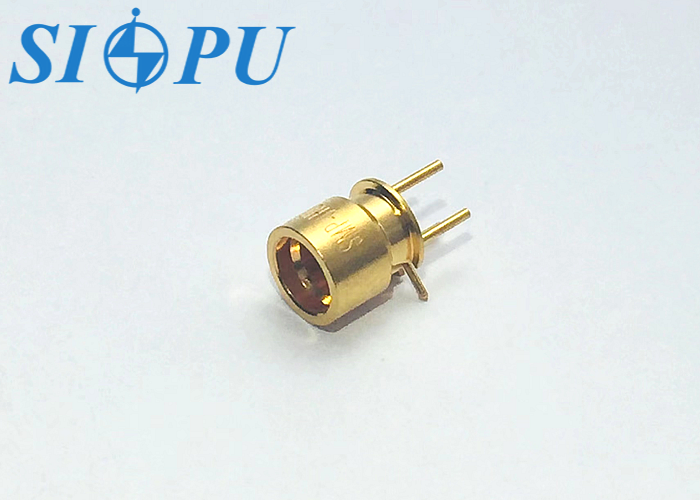

SMP Male RF Coaxial Connector – PCB Mount, Solder Type

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-40GHz

Dielectric withstanding voltage

 500V VSWR ≤1.5

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring /
