Flange Mount RF Coax Adapter 2.92 Female To 2.92 Female

Brand Name : SIPU

Place of Origin : China

MOQ : 50

Payment Terms : L/C, T/T, Western Union

Model Number : 2.92-KFK-2G

Certification : ISO9001-2017 RoHS

Delivery Time : 4-6weeks

Packaging Details : Carton

Price : Discuss

Supply Ability : 100000pcs/year

Product name : Flange Mount RF Coax Adapter

Gender : Female to Female

Type : Straight

Characteristic impedance : 50Ω

Dielectric withstanding voltage : 1000V

Insulation resistance : ≥5000MΩ

Center conductor : ≤3.0mΩ

Outer conductor : ≤2.0mΩ

Frequency range : DC-40GHz

Durability : 500times

Insulating medium : PEI

Material : Stainless steel

Plating : Passivation

Contact Now

Flange Mount RF Coax Adapter 2.92 Female To 2.92 Female

Product introduction

The RF coaxial adapter of each specification is the guarantee of the correct transfer of connectors within the same series and between different series, and the main role is to connect bridges.
Scope of application: It is generally used in the conversion and connection of the system, and is usually used in test cables and test instruments.
Product features: Four-hole flange mounting, both ends can be mated with 2.92,SMA,3.5 series male connectors, with high frequency, excellent electrical performance, reliable connection characteristics.

Product specifications

Flange Mount RF Coax Adapter 2.92 Female To 2.92 Female

Important technical parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-40GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.05+0.008F

Insulation resistance

 ≥5000MΩ

Insertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

 PEI

Outer conductor

Stainless steel,passivating

 / /

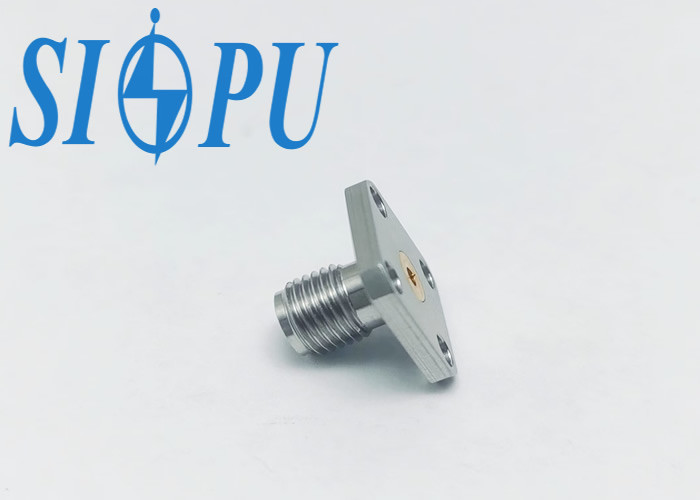

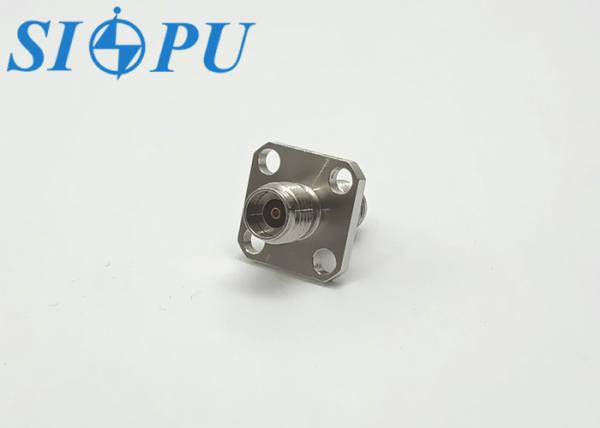

Picture display

Flange Mount RF Coax Adapter 2.92 Female To 2.92 FemaleFlange Mount RF Coax Adapter 2.92 Female To 2.92 FemaleFlange Mount RF Coax Adapter 2.92 Female To 2.92 Female
