2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable

Brand Name : SIPU

Model Number : 2.92-J360G

Certification : ISO9001-2017, RoHS, CE

Place of Origin : China

MOQ : 50

Price : ＄4.2-21

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs/year

Delivery Time : 6-8weeks

Packaging Details : Carton

Product name : 2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable

Gender : Male

Type : Straight

Characteristic impedance : 50Ω

Dielectric withstanding voltage : 1000V

Insulation resistance : ≥5000MΩ

Center conductor : ≤3.0mΩ

Outer conductor : ≤2.0mΩ

Frequency range : DC-40GHz

Durability : 500times

Insulating medium : PEI

Material : Stainless steel

Plating : Passivation

Contact Now

2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable

Product Overview

The 2.92mm series, also known as the K series, is a precision millimeter-wave RF coaxial connector developed as an upgrade from the SMA series. It features an air dielectric interface, threaded coupling, and is interchangeable with SMA and 3.5mm connectors. With a compact size, lightweight structure, and support for frequencies up to 40GHz, it is ideal for high-performance RF applications.

Application Scope

Satellite communications

Radar systems and defense electronics

Precision test and measurement instrumentation

Harsh outdoor RF environments

Product Features

2.92mm male straight connector, designed for FSE-360 cable

Soldered core conductor and shield for optimal signal integrity

Constructed from special-grade stainless steel for ultra-long salt spray resistance

Excellent mechanical stability, reliable connection, and high-frequency capability

Suitable for harsh environments requiring ruggedized RF components

Product Specifications

2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable

Important Technical Parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-40GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.1+0.001F

Insulation resistance

 ≥5000MΩ

Insertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

 PEI

Outer conductor

Stainless steel,passivating

 Sealing ring Silicon rubber

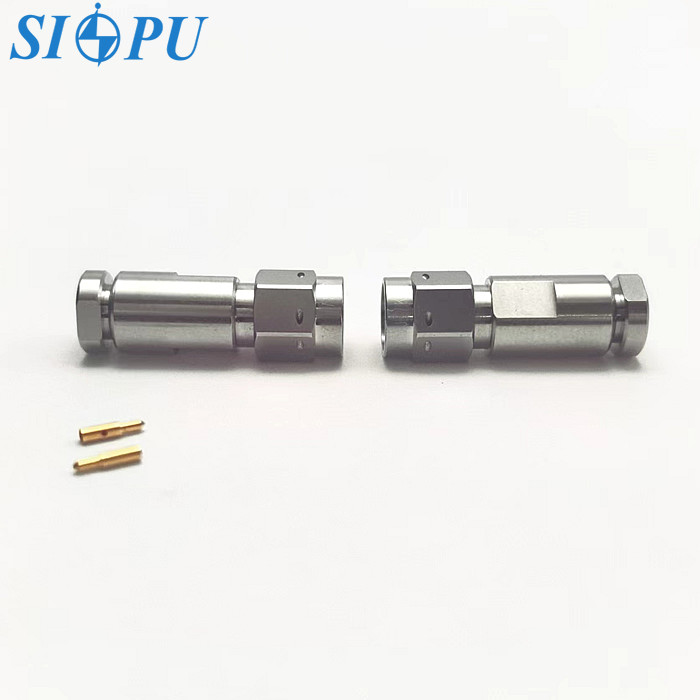

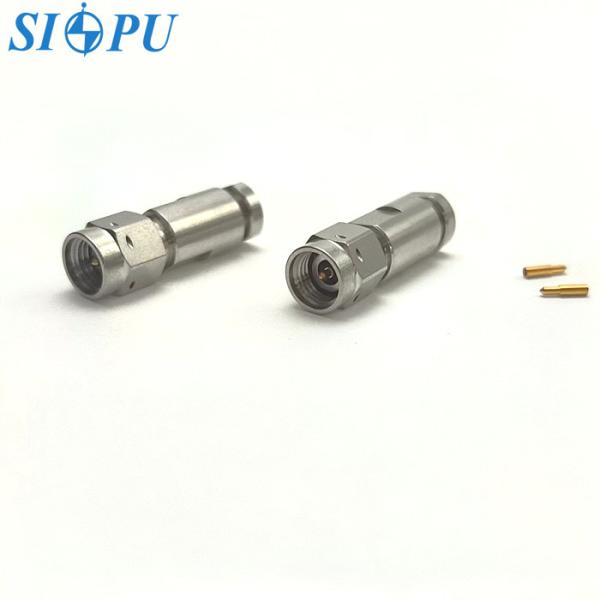

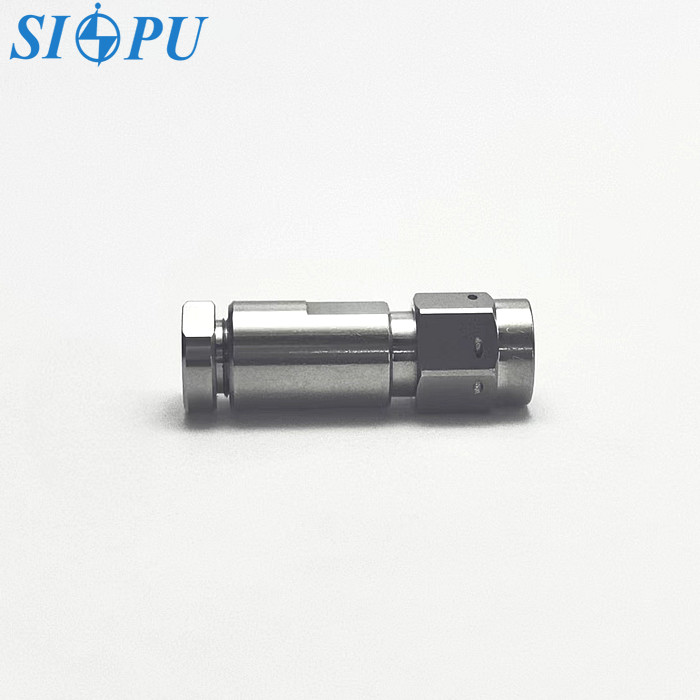

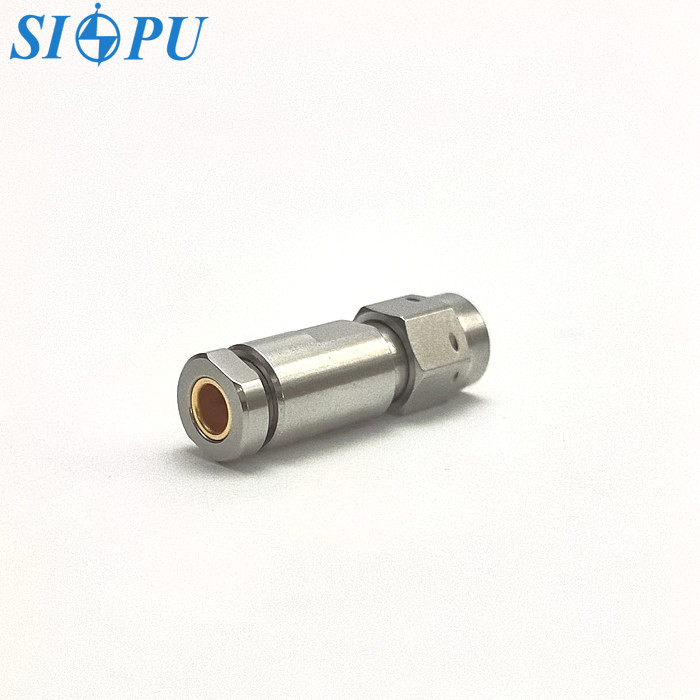

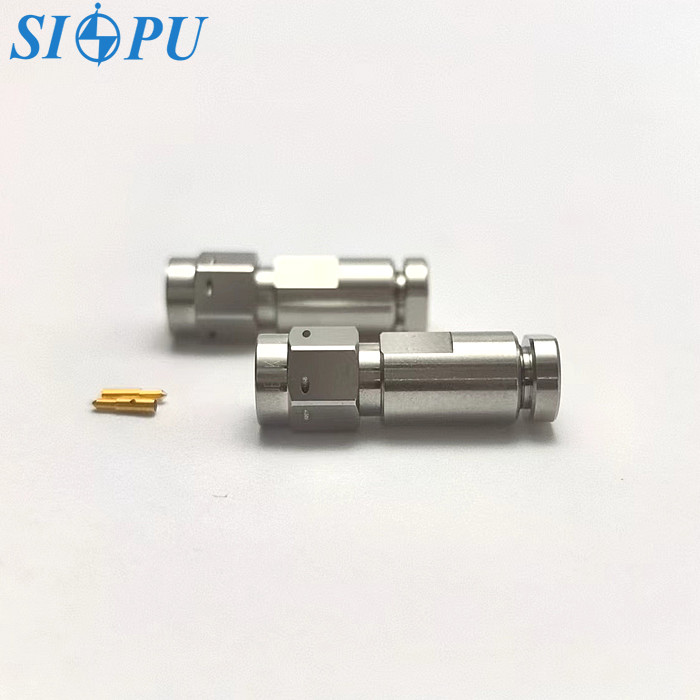

Product Image Gallery

2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable2.92mm Male RF Coaxial Connector – Stainless Steel, High Salt Spray, for FSE-360 Cable

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
