SMA Female to MCX Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)–MCX(J))

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : SMA/MCX-KJ

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 100

Price : Discuss

Payment Terms : L/C,T/T,Western Union

Supply Ability : 120000pcs/year

Delivery Time : 6-8weekd

Packaging Details : Carton

Product name : SMA Female to MCX Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)–MCX(J))

Material : Brass

Plating : Gold

Durability 500 times : 500 times

Contact Now

SMA Female to MCX Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)–MCX(J))

Product Overview

RF coaxial adapters are essential components that ensure proper interface conversion between connectors of the same or different series. They primarily serve as bridge connections, enabling seamless signal transmission across diverse RF systems.

Application Scope:
Widely used in system conversion and interconnection, especially in test instruments, RF modules, and coaxial test cables.

Product Features:

Interfaces: SMA male to MCX female

Compact size, ideal for space-limited RF designs

High reliability and long service life

Excellent electrical performance with low insertion loss

Suitable for high-frequency, high-precision RF applications

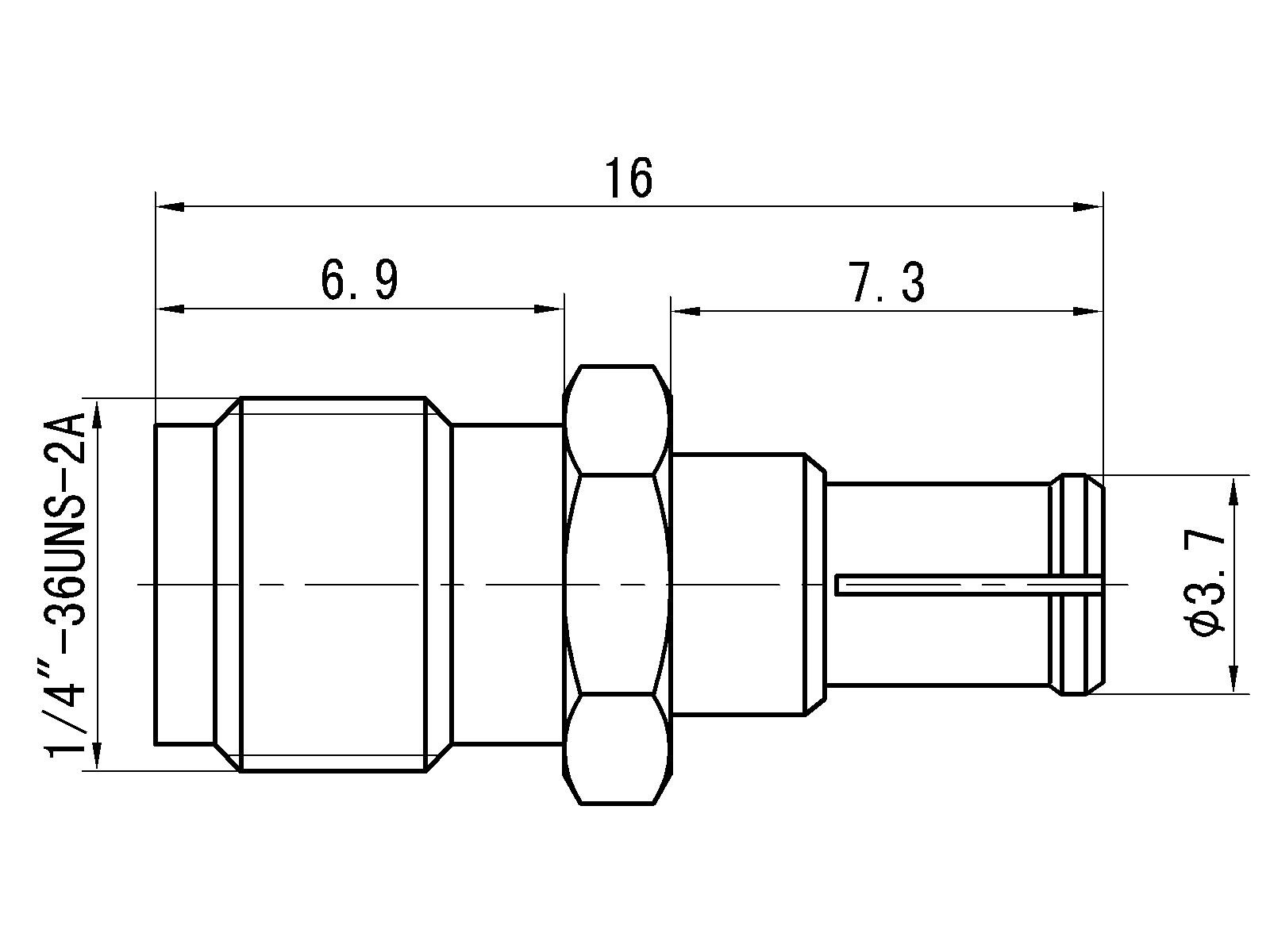

Product Appearance

SMA Female to MCX Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)–MCX(J))

Important Technical Parameter

Electrical property

 Temperature range -55～+125℃

Characteristic impedance

 50Ω Frequency range DC-6GHz

Dielectric withstanding voltage

 750V VSWR ≤1.3

Insulation resistance

 ≥1000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤5.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Berylliun bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating / /

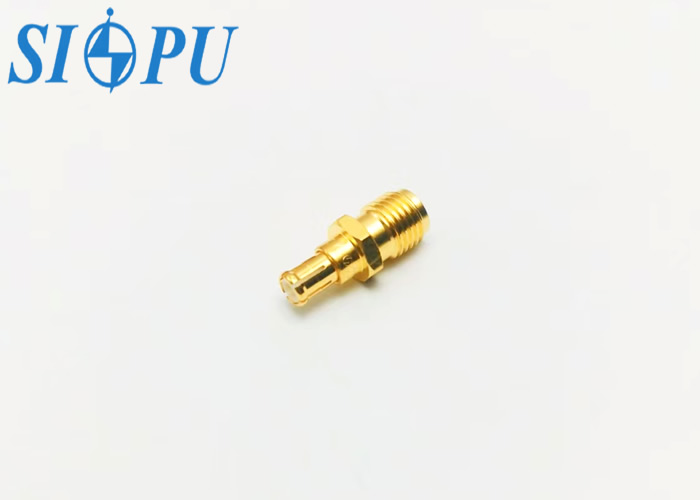

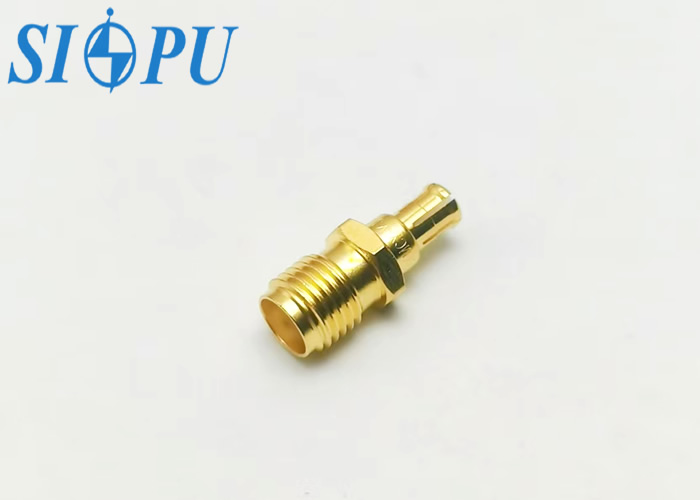

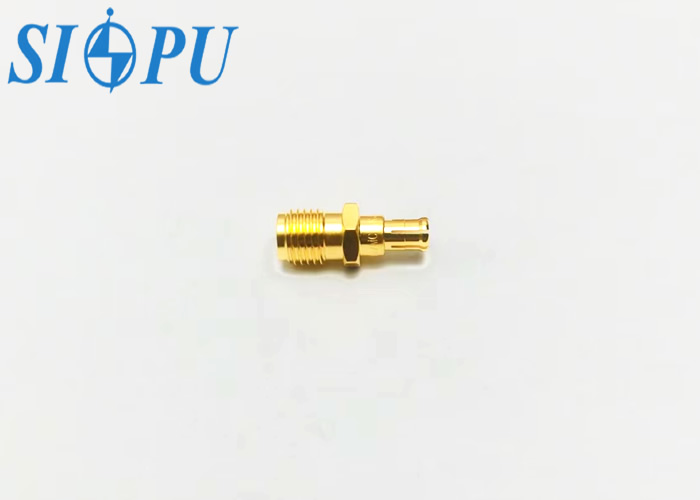

Product Image Gallery

SMA Female to MCX Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)–MCX(J))SMA Female to MCX Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)–MCX(J))SMA Female to MCX Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)–MCX(J))
