SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)-SSMB(K))

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : SMA/SMB-KK

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 100

Price : Discuss

Payment Terms : L/C,T/T,Western Union

Packaging Details : Carton

Delivery Time : 6-8weekd

Supply Ability : 120000pcs/year

Product name : SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)-SSMB(K))

Material : Brass

Plating : Gold

Durability 500 times : 500 times

Contact Now

SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)-SSMB(K))

Product Overview

RF coaxial adapters of various specifications are essential components for ensuring proper and reliable connections between connectors of the same or different series. They primarily serve as bridging devices to facilitate signal transmission across different RF interfaces.

Application Scope:
Commonly used for system interconnection and signal conversion, particularly in testing cables, measurement equipment, and communication systems.

Product Features:

Interface: One end compatible with SMA male connectors, the other with SMB male connectors

Compact design, suitable for space-constrained environments

Excellent electrical performance with low insertion loss

Durable construction ensuring long service life

Ideal for precision RF applications requiring inter-series connectivity

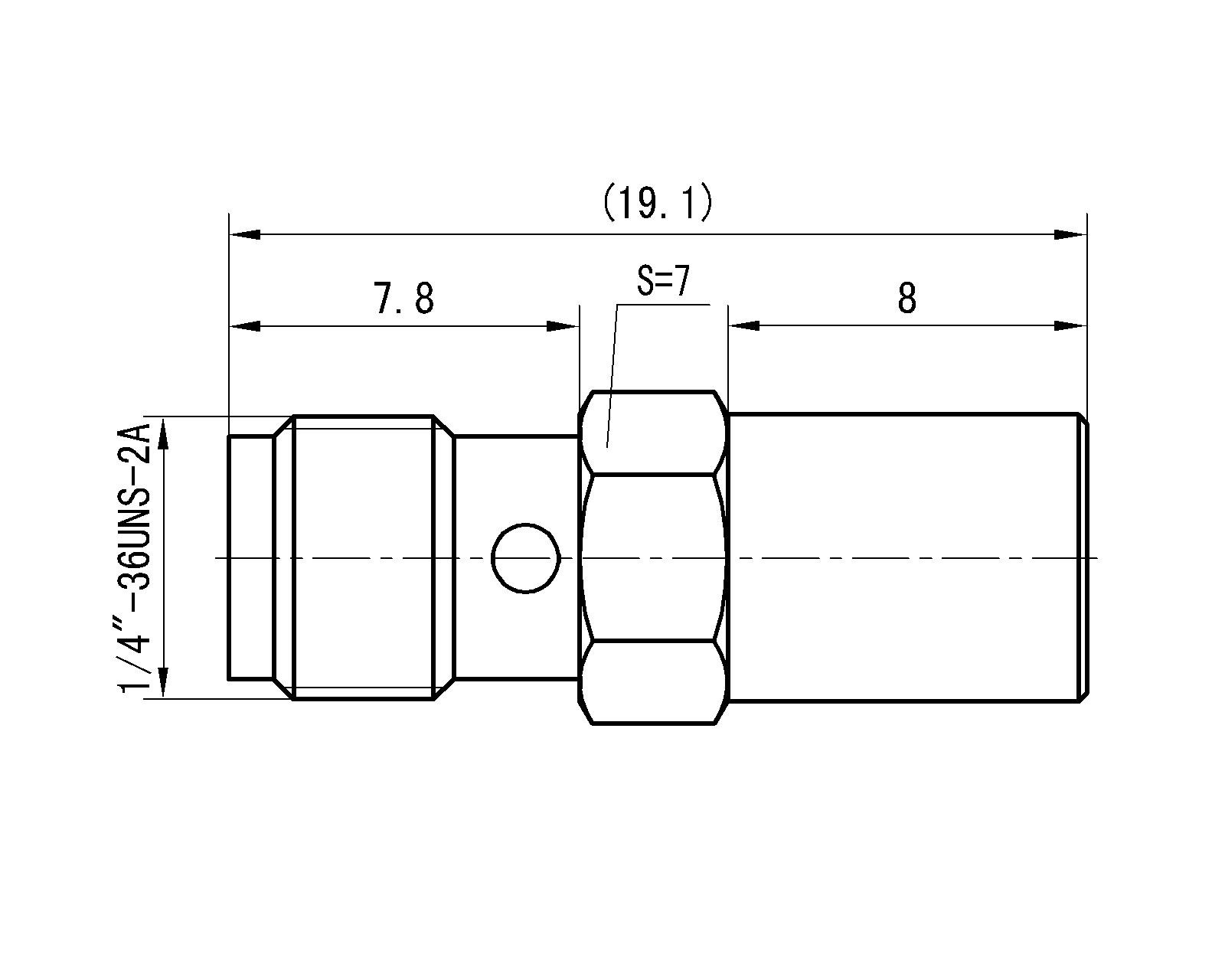

Product Appearance

SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)-SSMB(K))

Important Technical Parameter

Electrical property

 Temperature range -55～+125℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 500V VSWR ≤1.3

Insulation resistance

 ≥1000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤1mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Berylliun bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring /

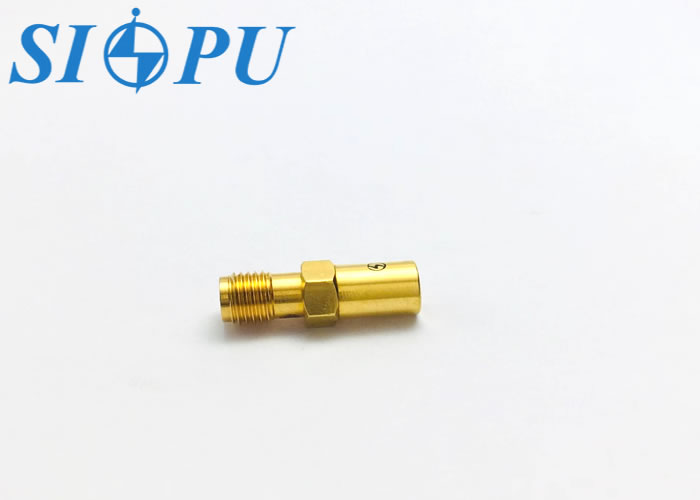

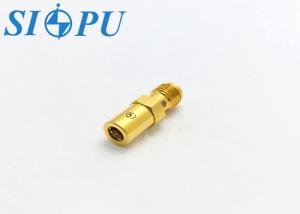

Product Image Gallery

SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)-SSMB(K))SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)-SSMB(K))
