RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C,T/T,Western Union

Model Number : N/SMA-JK

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weekd

Supply Ability : 120000pcs/year

Product name : RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

Material : Brass

Plating : Nickle

Durability 500 times : 500 times

Contact Now

RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

Product Overview

RF coaxial adapters of various specifications ensure proper interconnection between different connector series or within the same series. They serve as essential bridging components in RF systems.

Application Scope:
Widely used for system conversion and interconnection, particularly in test instruments, test cables, and RF modules.

Product Features:

Interface: N Female to SMA Male

Strong environmental resistance for stable operation in demanding conditions

High reliability and low insertion loss

Excellent electrical performance with consistent impedance matching

Suitable for laboratory testing, communication equipment, and RF setups

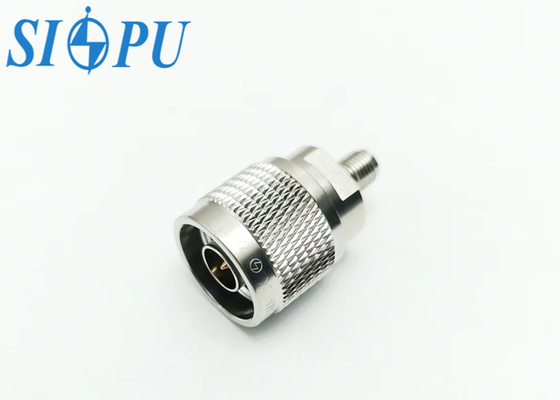

Product Appearance

RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating Sealing ring Silicon rubber

Product Image Gallery

RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)
