Brand Name : SIPU
Place of Origin : CHINA
MOQ : 100
Payment Terms : L/C,T/T,Western Union
Model Number : SMA/SSMA-JK
Certification : ISO9001, RoHS, CE
Packaging Details : Carton
Price : Discuss
Delivery Time : 6-8weekd
Supply Ability : 120000pcs/year
Product name : SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
Material : Brass
Plating : Gold
Durability 500 times : 500 times
SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
Product Overview
RF coaxial adapters are essential components for enabling correct connections between different or same-series RF connectors, serving as reliable bridge elements in high-frequency systems.
Application Scope
Widely used for interface conversion and system connectivity, particularly in RF testing environments, such as test instruments and measurement cables.
Product Features
Interface: SMA Male to SSMA Female
Compact design with high mechanical and electrical precision
Excellent performance across a wide frequency range
High reliability and durability for repeated use
Ideal for compact systems requiring stable signal transmission

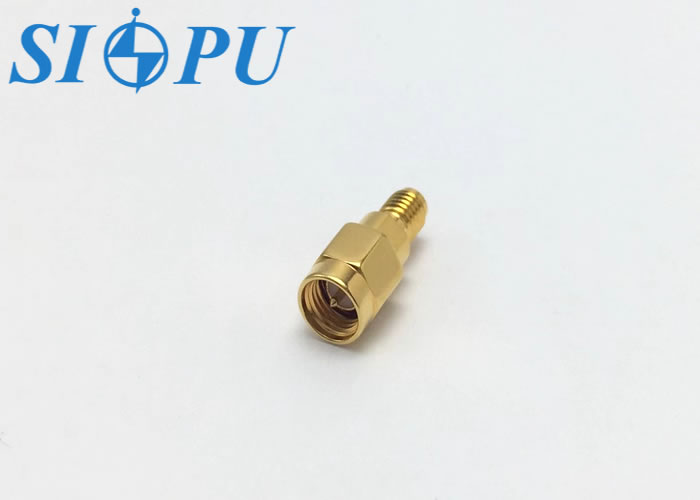

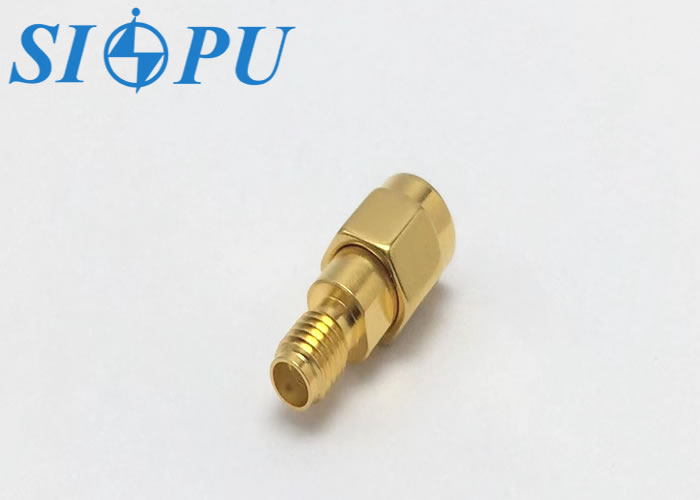

Product Appearance
Important Technical Parameter
Electrical property
| Temperature range | -65~+125℃ | ||
Characteristic impedance
| 50Ω | Frequency range | DC-18GHz | |
Dielectric withstanding voltage
| 750V | VSWR | ≤1.05+0.012F(GHz) | |
Insulation resistance
| ≥5000MΩ | Insertion loss | ≤0.05√F(GHz)dB | |
Contact resistance
| Center conductor | ≤3.0mΩ | Mechanical property | |
Outer conductor | ≤2.5mΩ | Durability | 500times |
Materials and Surface Treatment
Center conductor
| Beryllium bronze,gold plating | Insulating medium | PTFE |
Outer conductor
| Brass,gold plating | Sealing ring | / |

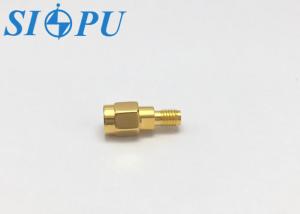

Product Image Gallery
![]() |
SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K) Images |
