TNC Female RF Coaxial Connector – Compatible with RG316/U Cable

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : TNC-KF3A

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Supply Ability : 120000pcs/year

Product name : TNC Female RF Coaxial Connector – Compatible with RG316/U Cable

Type : Straight

Gender : Female

Material : Brass

Plating : Nickle

Insulating medium : PTFE

Durability : 500 times

Contact Now

TNC Female RF Coaxial Connector – Compatible with RG316/U Cable

Product Overview

TNC series connectors comply with GJB681A, MIL-C-39012, and IEC 60169-17 standards. These connectors are designed as small to medium-power RF interfaces featuring a threaded coupling mechanism, making them especially well-suited for mobile communication equipment operating under vibration or harsh environmental conditions.

Applications

Communication systems

Antennas

Medium-power RF transmission

Outdoor and mobile equipment

Product Features

Compatible with RG316/U RF coaxial cable

Secure threaded connection for high vibration resistance

Excellent electrical performance and signal integrity

Strong environmental durability for outdoor use

Product Specifications

TNC Female RF Coaxial Connector – Compatible with RG316/U Cable

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating / /

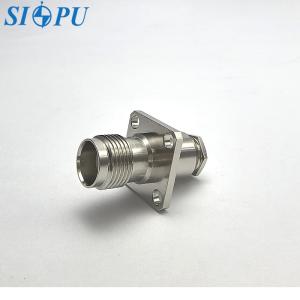

Product Image Gallery

TNC Female RF Coaxial Connector – Compatible with RG316/U CableTNC Female RF Coaxial Connector – Compatible with RG316/U Cable

TNC Female RF Coaxial Connector – Compatible with RG316/U CableTNC Female RF Coaxial Connector – Compatible with RG316/U Cable
