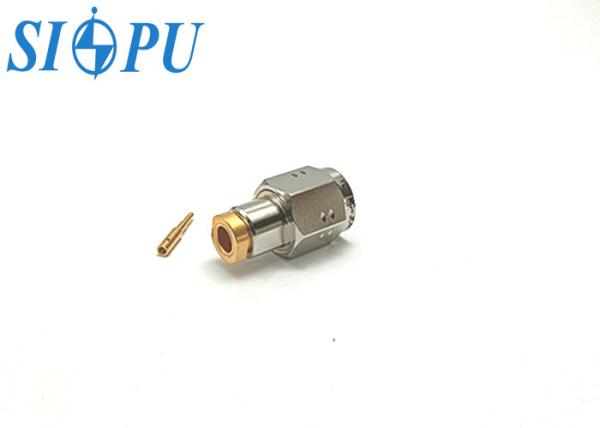

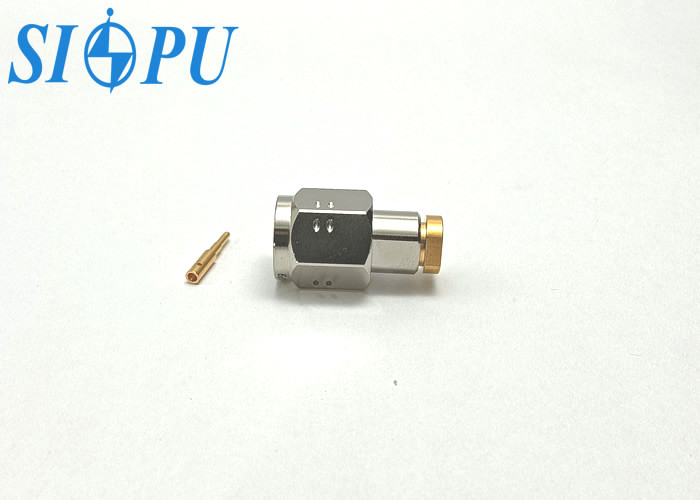

TNC Male RF Coaxial Connector – Compatible with CXN3449 Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : TNC-JC48

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Supply Ability : 120000pcs/year

Product name : TNC Male RF Coaxial Connector – Compatible with CXN3449 Cable

Gender : Male

Type : Straight

Material : Brass

Plating : Nickle

Insulating medium : PTFE

Durability : 500 times

Contact Now

TNC Male RF Coaxial Connector – Compatible with CXN3449 Cable

Product Overview

The TNC series is a threaded RF coaxial connector designed for small to medium power applications. As the threaded variant of the BNC series, it offers enhanced vibration resistance, making it ideal for use in mobile communication systems and other environments subject to mechanical stress.

Applications:
Widely used in communication systems, antennas, radio equipment, and other RF transmission fields.

Product Features:

Threaded coupling design with microbore structure

Compatible with CXN3449 coaxial cable

Excellent vibration resistance and mechanical stability

Wide operating frequency bandwidth

Reliable electrical performance and durable connection integrity

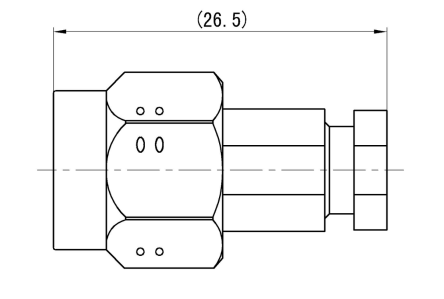

Product Specifications

TNC Male RF Coaxial Connector – Compatible with CXN3449 Cable

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating / /

Product Image Gallery

TNC Male RF Coaxial Connector – Compatible with CXN3449 CableTNC Male RF Coaxial Connector – Compatible with CXN3449 CableTNC Male RF Coaxial Connector – Compatible with CXN3449 Cable
