BNC Female RF Coaxial Connector – Flange Mount, for RG142/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : Gender

Model Number : BNC-KF5

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Product name : BNC Female RF Coaxial Connector – Flange Mount, for RG142/U Cable

Gender : Female

Type : Straight

Material : Brass

Plating : Nickle

Insulating medium : PTFE

Durability : 500 times

Contact Now

BNC Female RF Coaxial Connector – Flange Mount, for RG142/U Cable

Product Overview

The BNC series is a bayonet-style RF coaxial connector developed and manufactured in accordance with MIL-C-39012/16–24 standards. It offers fast connection, reliable electrical contact, and full interchangeability with similar international products. Its quick-lock design makes it ideal for applications requiring frequent mating and unmating.

Applications:
Commonly used in radio equipment, electronic instruments, and the transmission of analog or digital video signals.

Product Features:

Four-hole flange-mounted female connector

Compatible with RG142/U RF coaxial cable

Bayonet coupling for quick and secure connections

Excellent vibration resistance

Stable and reliable electrical performance

Suitable for panel-mounted RF interfaces in demanding environments

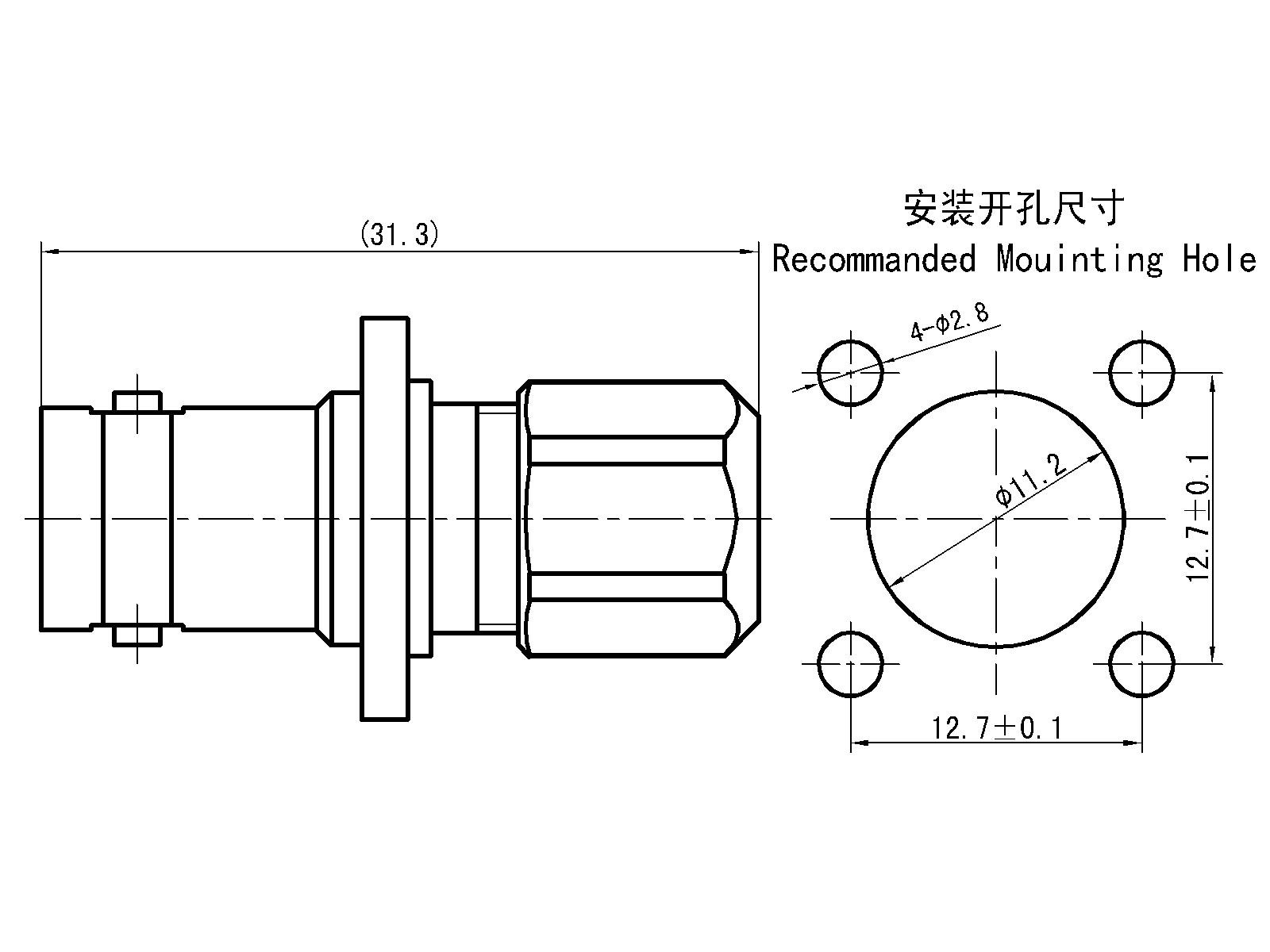

Product Specifications

BNC Female RF Coaxial Connector – Flange Mount, for RG142/U Cable

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium Bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,nickel plating / /

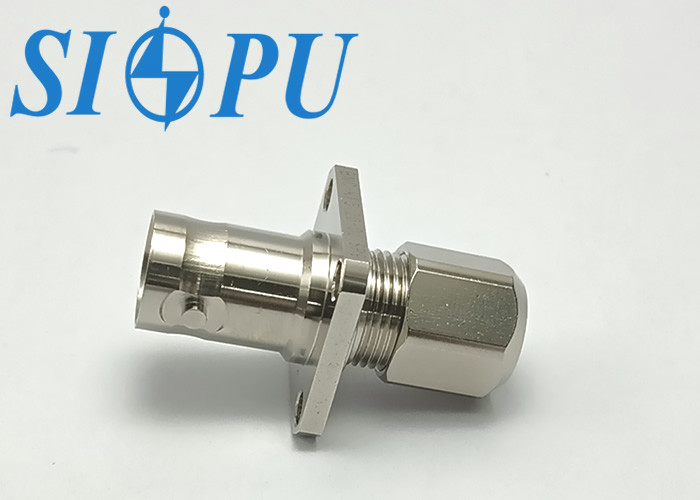

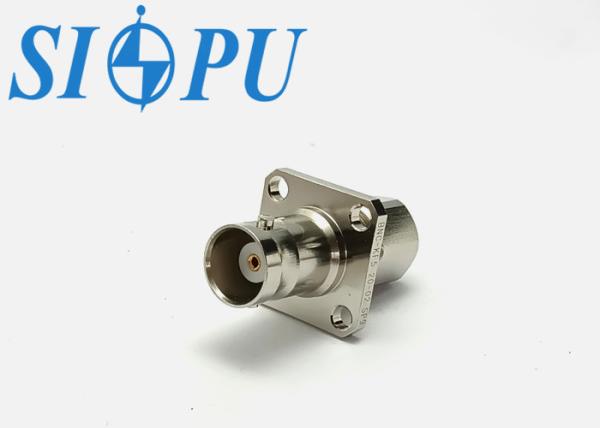

Product Image Gallery

BNC Female RF Coaxial Connector – Flange Mount, for RG142/U CableBNC Female RF Coaxial Connector – Flange Mount, for RG142/U Cable
