BNC Female RF Coaxial Connector – Microstrip, Thread Mount

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Model Number : BNC-50KYDL

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8 weeks

Product name : BNC Female RF Coaxial Connector – Microstrip, Thread Mount

Gender : Female

Type : Straight

Material : Brass

Plating : Nickle

Durability : 500 times

Insulating medium : PTFE

Contact Now

BNC Female RF Coaxial Connector – Microstrip, Thread Mount

Product Overview

The BNC series is a bayonet-style RF coaxial connector developed and manufactured in accordance with MIL-C-39012/16–24 standards. It features quick connect/disconnect capability, reliable electrical contact, and full interchangeability with similar international products. BNC connectors are widely used in electronic instruments and radio equipment for connecting RF coaxial cables.

Applications:
Primarily used in electronic instrumentation, radio equipment, and the transmission of analog or digital video signals.

Product Features:

Thread-mounted microstrip-type female connector

Bayonet coupling mechanism for fast and secure connection

Excellent vibration resistance

Stable and reliable electrical contact

Ideal for PCB-mounted RF applications requiring compact, durable connections

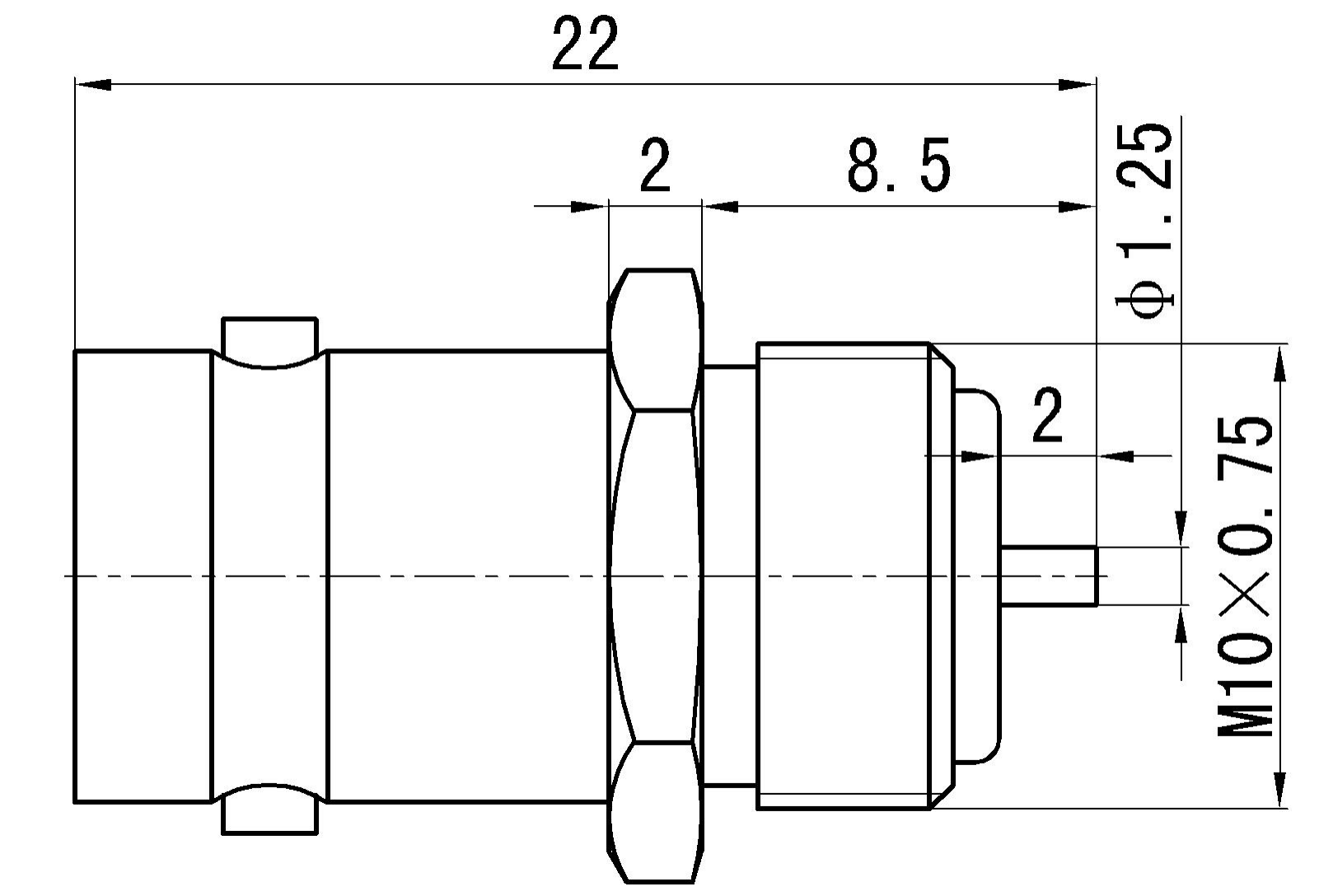

Product Specifications

BNC Female RF Coaxial Connector – Microstrip, Thread Mount

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,nickel plating / /

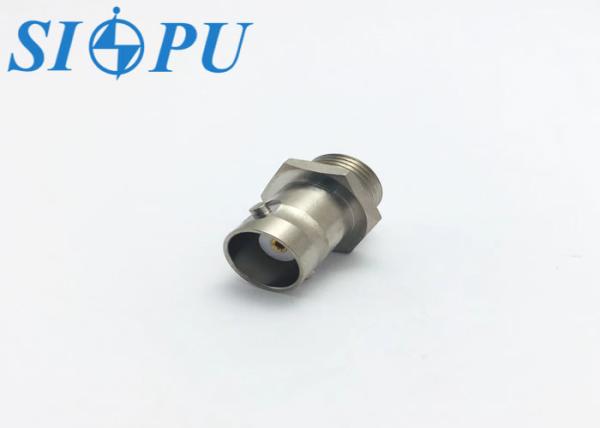

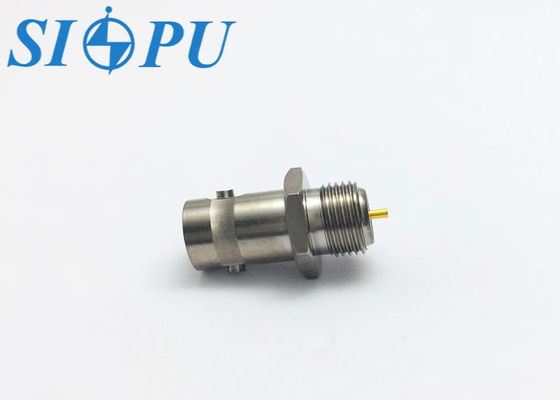

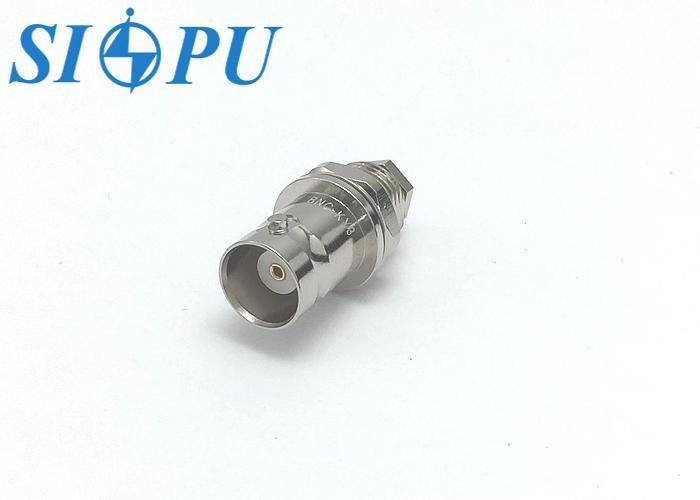

Product Image Gallery

BNC Female RF Coaxial Connector – Microstrip, Thread MountBNC Female RF Coaxial Connector – Microstrip, Thread Mount
