SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

  • 1
  • 2

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMB-KFB1A-T1

Certification : ISO9001, RoHS, CE

Supply Ability : 100000 pcs/year

Price : Discuss

Packaging Details : Carton

Delivery Time : 5-8 business days

Product name : SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Insulating medium : PTFE

Durability : 500 times

Contact Now

SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Product Overview

The SMB series is a push-in locking RF coaxial connector known for its compact size, light weight, ease of use, and excellent electrical performance. It complies with MIL-C-39012 and IEC60169-10 standards, ensuring international compatibility.

Applications
Widely used in communication base stations, wireless communication equipment, and high-frequency loop connections in electronic instruments.

Product Features

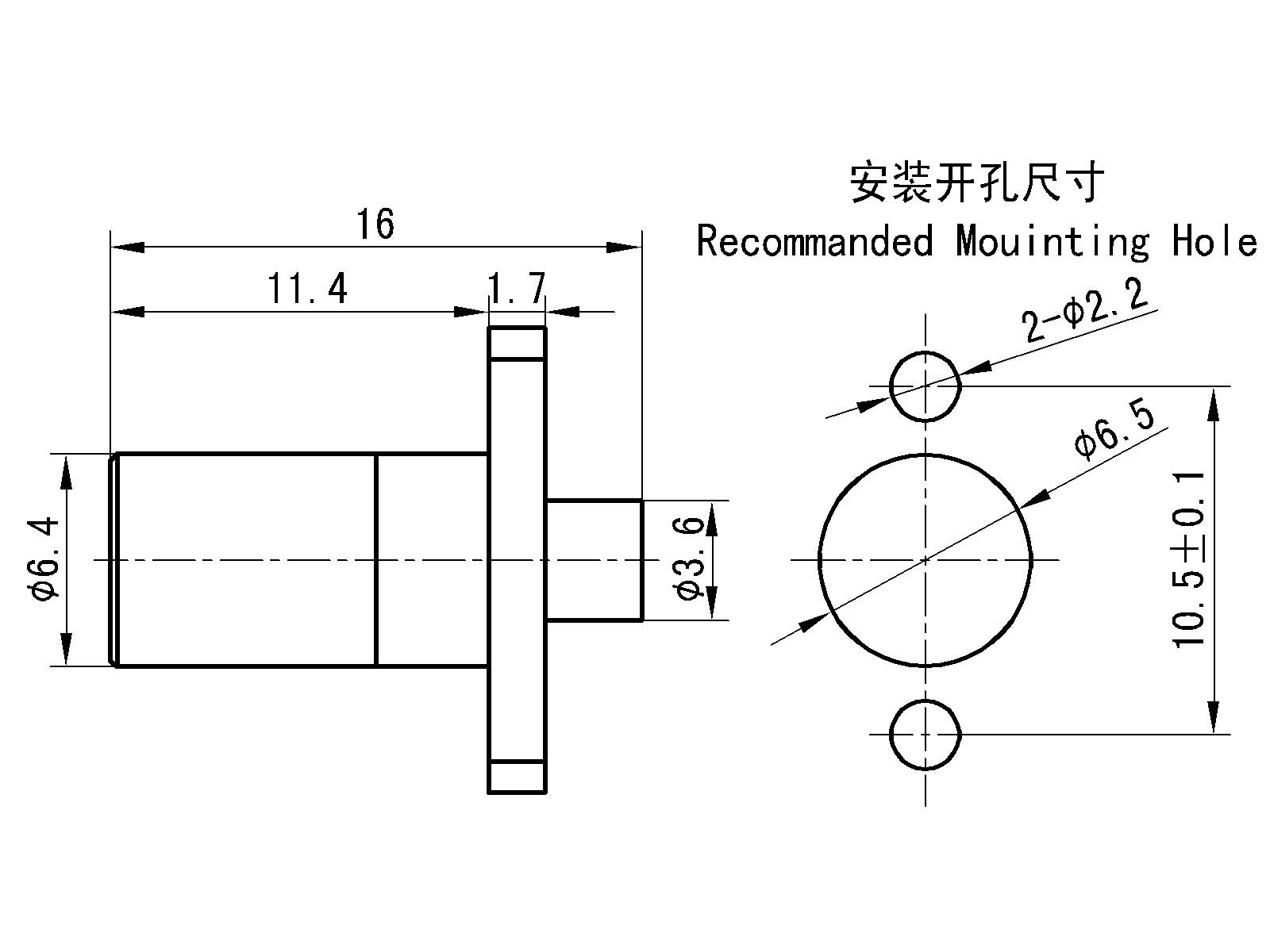

Two-hole flange mount structure

Mates with 1# semi-rigid or semi-flexible coaxial cables

Compact and lightweight design

Easy to install and use

Excellent salt spray resistance

Reliable electrical performance in demanding environments

Product Specifications

SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Important Technical Parameters

Electrical property

Temperature range

 -65～+165℃

Characteristic impedance

 50Ω

Frequency range

 DC-4GHz

Dielectric withstanding voltage

 750V

VSWR

 ≤1.34

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.3√F(GHz)dB

Contact resistance

Center conductor

 ≤6.0mΩ

Mechanical property

Outer conductor

 ≤1.0mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

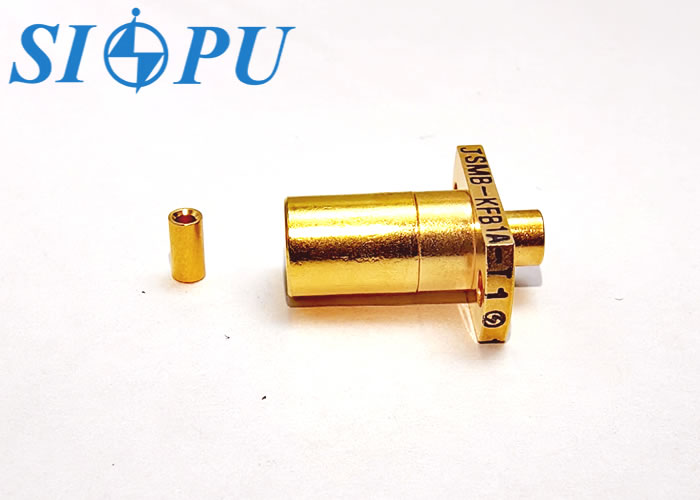

Product Image Gallery

SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
