SSMB Male RF Coaxial Connector – Straight Type, PCB Solder Mount

Brand Name : SIPU

Model Number : SSMB-JHD

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 100

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Packaging Details : Carton

Supply Ability : 100000pcs/year

Delivery Time : 5-8work days

Product name : SSMB Male RF Coaxial Connector – Straight Type, PCB Solder Mount

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

Insulating medium : PTFE

Contact Now

SSMB Male RF Coaxial Connector – Straight Type, PCB Solder Mount

Product Overview

The SSMB series RF coaxial connector is a miniature push-in connector that shares structural similarities with the SMB series but features a smaller form factor. It offers the advantages of compact size, light weight, and easy, reliable connection. This series is ideal for RF coaxial cable connections in micro radio devices and electronic instruments.

Applications

Wireless communication equipment

Electronic instruments

Compact RF systems and modules

Product Features

Straight PCB soldering structure

Lightweight and space-saving design

Quick insertion and removal via snap-on mechanism

High reliability and ease of integration in dense circuit layouts

Product Specifications

SSMB Male RF Coaxial Connector – Straight Type, PCB Solder Mount

Important Technical Parameters

Electrical property

Temperature range

 -55～+155℃

Characteristic impedance

 50Ω

Frequency range

 DC-3GHz

Dielectric withstanding voltage

 500V

VSWR

 ≤1.35

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.06√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

Product Image Gallery

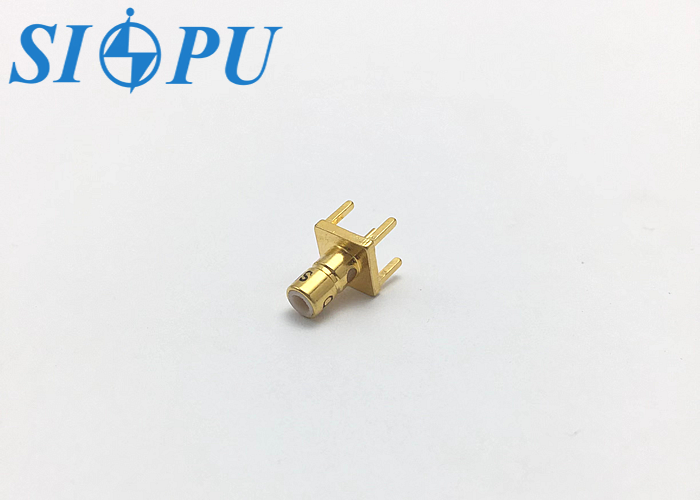

SSMB Male RF Coaxial Connector – Straight Type, PCB Solder MountSSMB Male RF Coaxial Connector – Straight Type, PCB Solder Mount


Product Tags:

SSMB RF Coaxial Connector



Coaxial PCB RF Connector



PCB Soldering SSMB Connector


China SSMB Male RF Coaxial Connector – Straight Type, PCB Solder Mount factory
