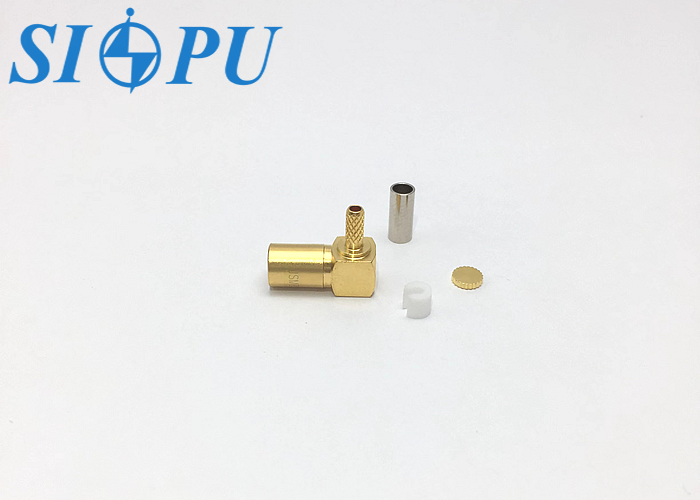

Product name : SMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
Gender : Female
Type : Right-angle
Material : Brass
Plating : Gold
Insulating medium : PTFE
Durability : 500 times
Product Overview
The SMB connector is a compact push-in locking RF connector designed primarily for connecting coaxial cables in high-frequency circuits. It is widely used in radio equipment and electronic instruments due to its small size, light weight, and reliable performance.
Applications
Electronic instruments
Radio communication equipment
RF systems and modules
Product Features
Right-angle (bent) SMB female interface
Compatible with RG316/U coaxial cable
Compact and lightweight design
Excellent electrical performance
Easy and secure snap-on connection

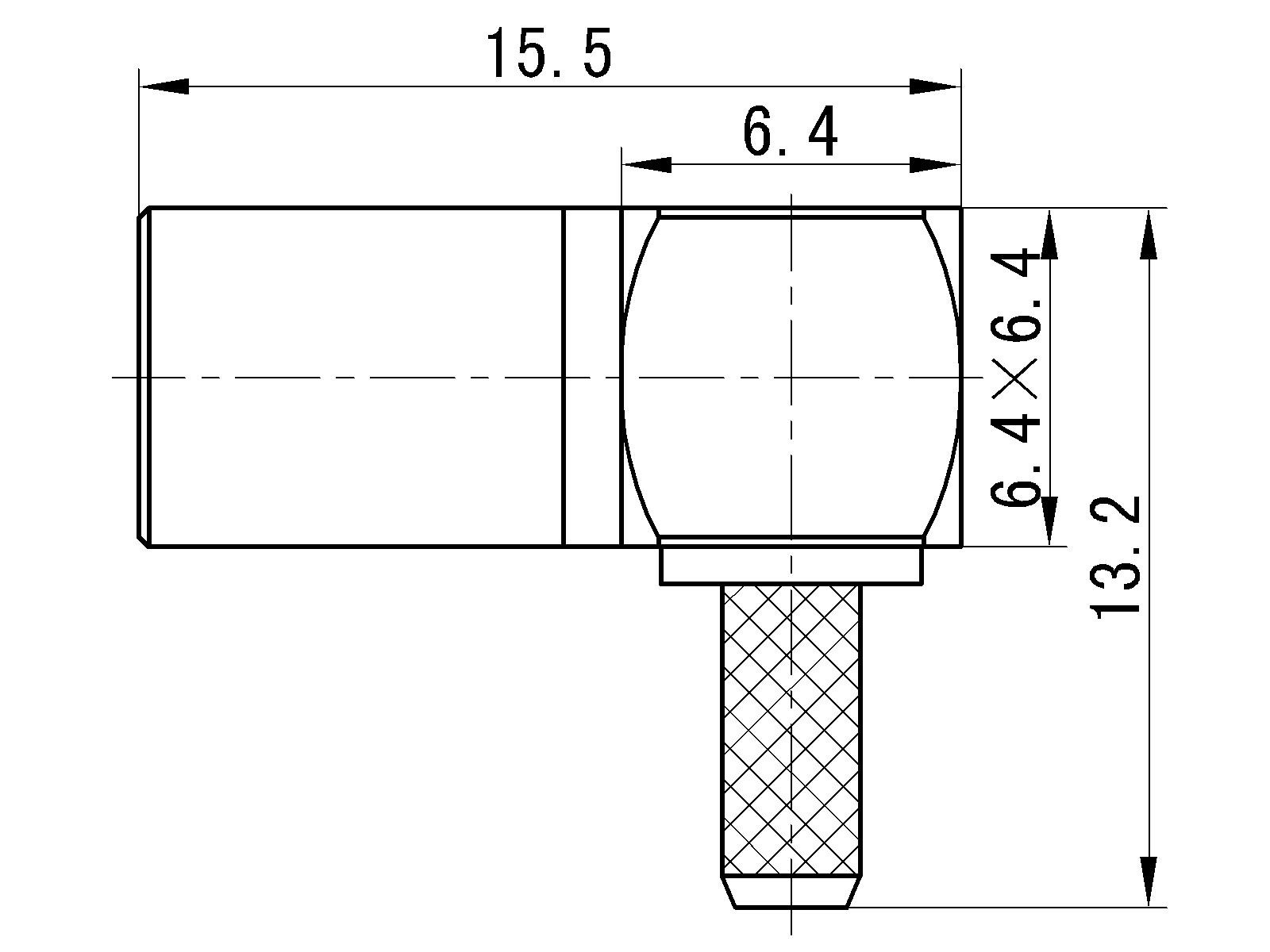

Product Specifications
Important Technical Parameters
Electrical property
| Temperature range | -65~+165℃ | ||
Characteristic impedance
| 50Ω | Frequency range | DC-4GHz | |
Dielectric withstanding voltage
| 750V | VSWR | ≤1.5 | |
Insulation resistance
| ≥1000MΩ | Insertion loss | ≤0.1√F(GHz)dB | |
Contact resistance
| Center conductor | ≤6.0mΩ | Mechanical property | |
Outer conductor | ≤1.0mΩ | Durability | 500times |
Materials and Surface Treatment
Center conductor
| Beryllium bronze,gold plating | Insulating medium | PTFE |
Outer conductor
| Brass,gold plating | / | / |
