Brand Name : SIPU
Model Number : SSMB-K2Y
Certification : ISO9001, RoHS, CE
Place of Origin : CHINA
MOQ : 100
Price : Discuss
Payment Terms : L/C, T/T, Western Union
Packaging Details : Carton
Supply Ability : 100000pcs/year
Delivery Time : 5-8week days
Product name : SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
Gender : Female
Type : Straight
Material : Brass
Plating : Gold
Insulating medium : PTFE
Durability : 500 times
Product Overview
The SSMB series is a miniature push-in locking RF connector known for its compact size, light weight, fast and convenient connection, and strong shock resistance. It is internationally compatible with similar standard products, making it a reliable choice for global applications.
Applications
Electronic instruments
Radio communication equipment
Compact RF modules and devices
Product Features
Push-in snap-lock design for quick and secure connection
Compatible with RG178/U coaxial cable
Small size and lightweight
High connection reliability and ease of use
Good resistance to vibration and mechanical stress
Product Specifications
Important Technical Parameters
Electrical property
| Temperature range | -55~+155℃ | ||
Characteristic impedance
| 50Ω | Frequency range | DC-3GHz | |
Dielectric withstanding voltage
| 500V | VSWR | ≤1.5 | |
Insulation resistance
| ≥1000MΩ | Insertion loss | ≤0.06√F(GHz)dB | |
Contact resistance | Center conductor | ≤5.0mΩ | Mechanical property | |
Outer conductor | ≤2.5mΩ | Durability | 500times |
Materials and Surface Treatment
Center conductor
| Beryllium bronze, gold plating | Insulating medium | PTFE |
Outer conductor
| Brass, gold plating | / | / |
Product Image Gallery
![]() |

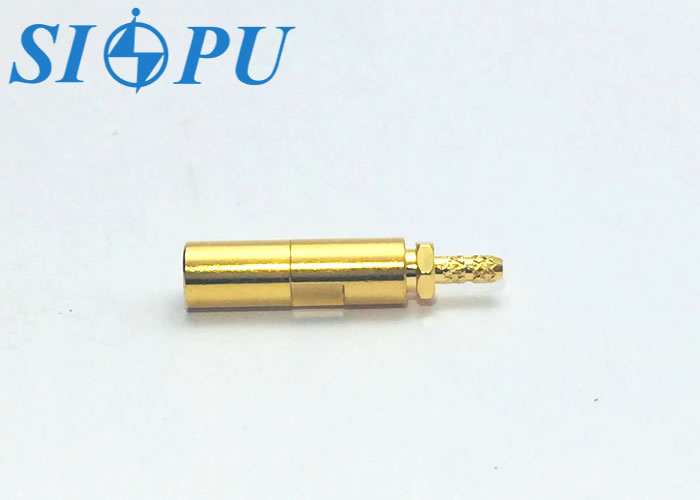

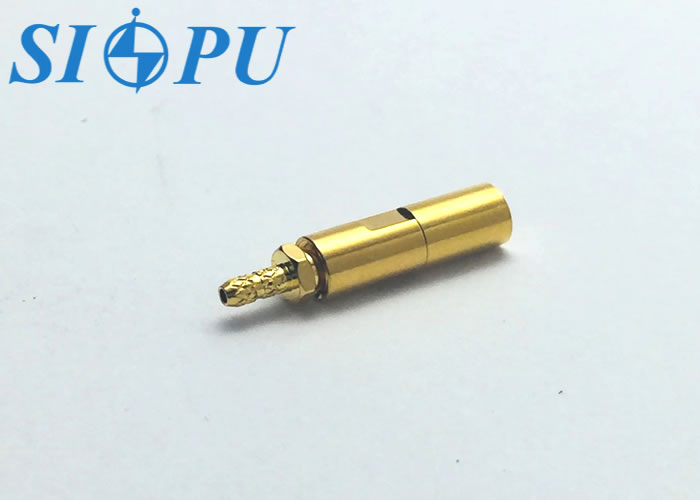

SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable Images |
