SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : SSMB-JFD1

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Packaging Details : Carton

Price : Discuss

Supply Ability : 100000pcs/year

Delivery Time : 5-8work days

Product name : SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Insulating medium : PTFE

Durability : 500 times

Contact Now

SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable

Product Overview

The SSMB series coaxial connector is a miniature push-in connector known for its small size, light weight, ease of use, and good shock resistance. Compliant with IEC 60169-19, it is compatible with internationally standardized counterparts, making it suitable for global applications in high-frequency systems.

Applications

Wireless communication equipment

Electronic instruments

Compact RF devices and modules

Product Features

Two-hole flange mount for secure installation

Straight microstrip design

Compact and lightweight

Easy and reliable push-in connection

Excellent solderability and mechanical stability

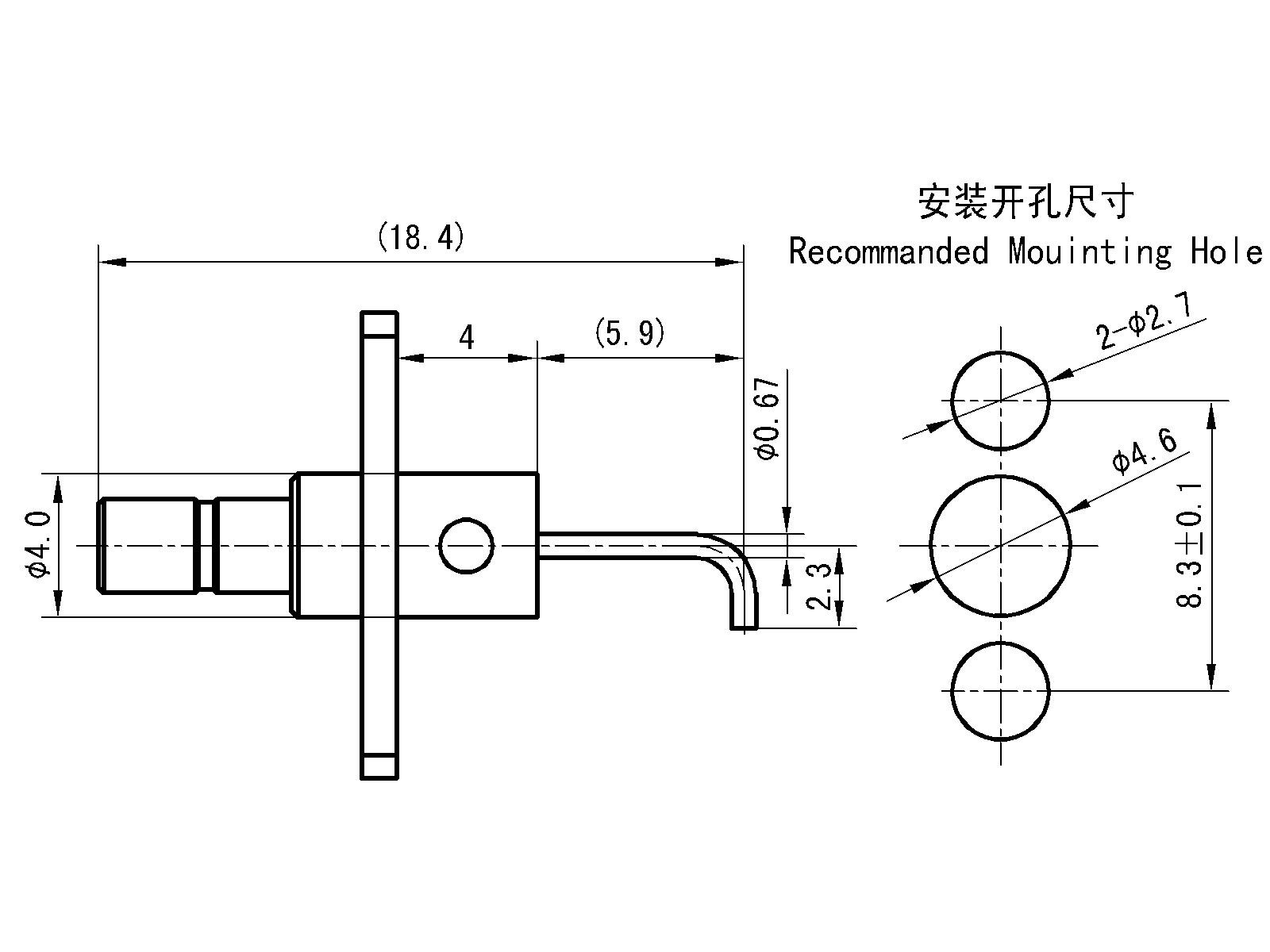

Product Specifications

SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable

Important Technical Parameters

Electrical property

Temperature range

 -55～+155℃

Characteristic impedance

 50Ω

Frequency range

 DC-3GHz

Dielectric withstanding voltage

 500V

VSWR

 ≤1.35

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.06√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

QSn, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

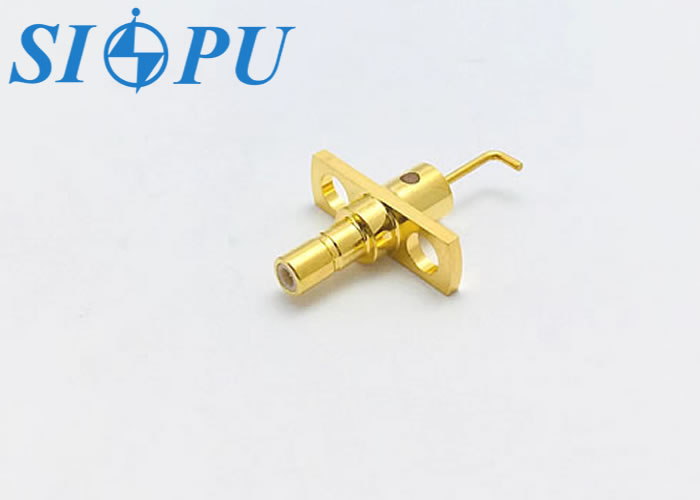

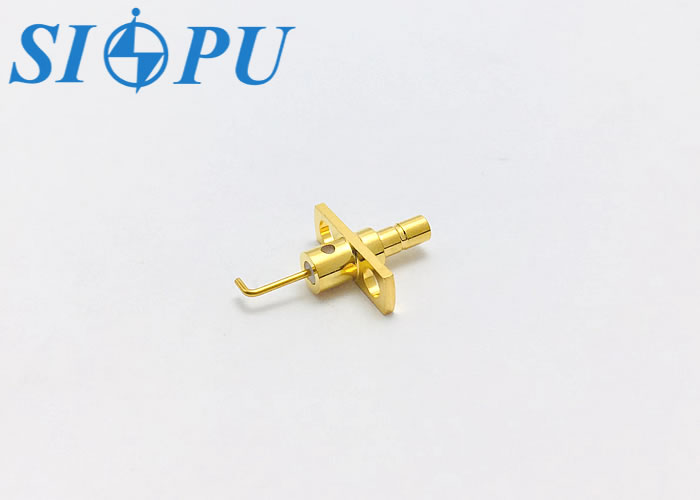

Product Image Gallery

SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, SolderableSSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
