SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : SSMB-JWHD1

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 100

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Packaging Details : Carton

Supply Ability : 100000pcs/year

Delivery Time : 5-8work days

Product name : SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Insulating medium : PTFE

Contact Now

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount

Product Overview

The SSMB series is a miniature push-in RF connector known for its compact size, light weight, fast and convenient connection, and good shock resistance. It is especially suitable for connecting RF coaxial cables in micro radio devices and electronic instruments where space and reliability are critical.

Applications

Electronic instruments

Radio communication equipment

Compact RF modules

Product Features

Right-angle (bent) PCB soldering structure

Small size and lightweight design

Good vibration and shock resistance

Easy installation with reliable push-in connection

Excellent soldering performance and electrical stability

Product Specifications

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount

Important Technical Parameters

Electrical property

Temperature range

 -55～+155℃

Characteristic impedance

 50Ω

Frequency range

 DC-3GHz

Dielectric withstanding voltage

 500V

VSWR

 ≤1.5

Insulation resistance

 ≥1000MΩ

Insertion loss

 ≤0.1√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Brass,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

 / /

Product Image Gallery

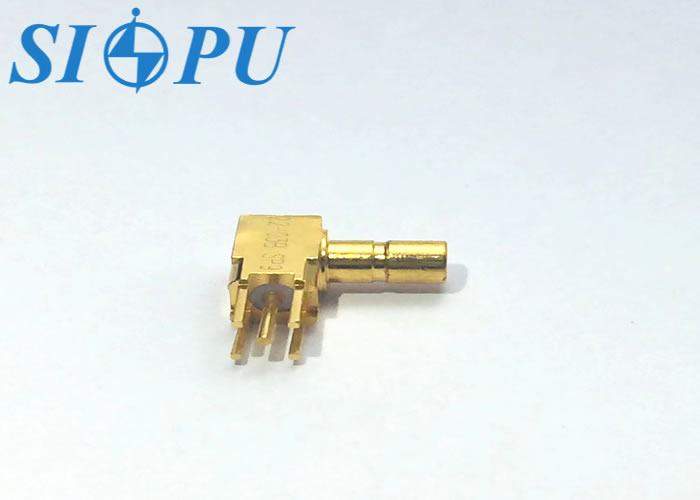

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder MountSSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount


Product Tags:

Brass RF Coax Connector



PCB Welding RF Coax Connector



SSMB Male Connector


China SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount factory

SSMB Male RF Coaxial Connector – Right-Angle, Brass Body, PCB Solder Mount Images
