Product name : SMB Male RF Coaxial Connector – Microstrip, Flange Mounted
Gender : Male
Type : Straight
Material : Brass
Plating : Gold
Insulating medium : PTFE
Durability : 500 times
Product Overview
The SMB series is a push-in locking RF coaxial connector known for its small size, light weight, ease of use, and excellent electrical performance. It is commonly used to connect RF coaxial cables in high-frequency circuits of radio equipment and electronic instruments.
Applications
Communication base stations
Wireless communication equipment
High-frequency loop connections in electronic instruments
Product Features
Two-hole flange-mounted microstrip connector
Compact and lightweight design
Easy and fast connection
Reliable electrical performance for high-frequency applications
Product Specifications
Important Technical Parameters
Electrical property
| Temperature range | -65~+165℃ | ||
Characteristic impedance
| 50Ω | Frequency range | DC-4GHz | |
Dielectric withstanding voltage
| 750V | VSWR | ≤1.3 | |
Insulation resistance
| ≥1000MΩ | Insertion loss | ≤0.06√F(GHz)dB | |
Contact resistance | Center conductor | ≤6.0mΩ | Mechanical property | |
Outer conductor | ≤1.0mΩ | Durability | 500Times |
Materials and Surface Treatment
Center conductor
| Brass, gold plating | Insulating medium | PTFE |
Outer conductor | Brass, gold plating | / | / |
Product Image Gallery
![]() |

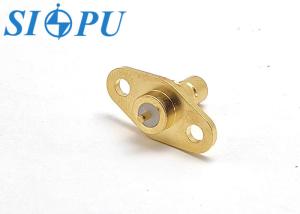

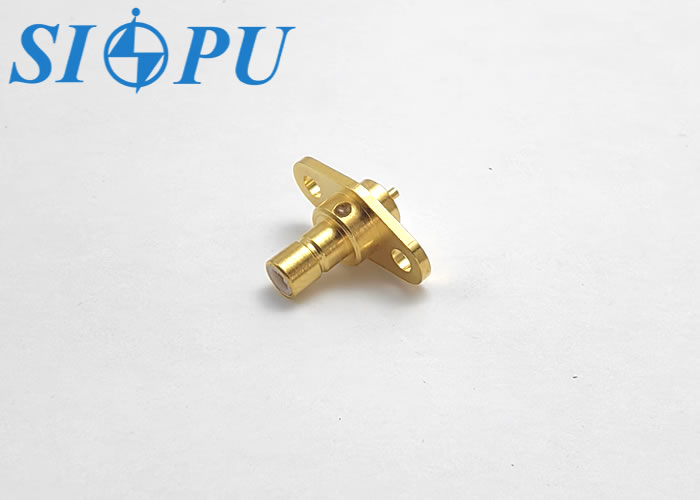

SMB Male RF Coaxial Connector – Microstrip, Flange Mounted Images |
